  11. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

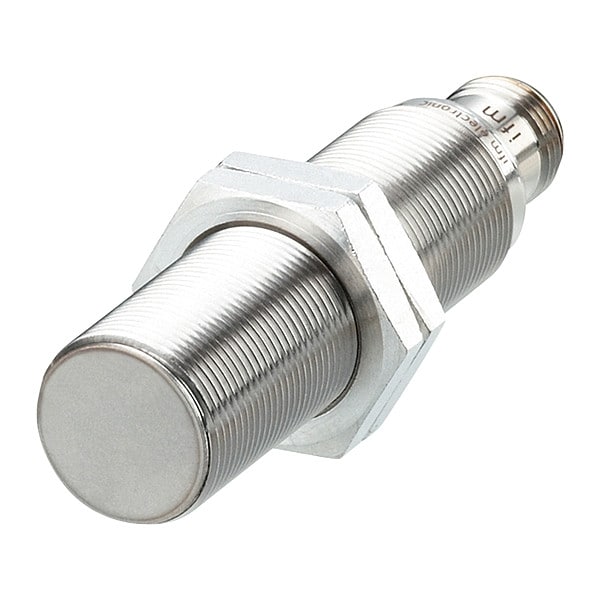

Ifm Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, M12, 3 Wires, Shielded IGT247 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Stainless Steel, M12, 3 Wires, Shielded

  • Mfr # IGT247

  • Zoro # G7095462

product price: $89.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Length
70 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
100 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IGT247
Zoro #
G7095462
UPC #
-
Country of Origin
Germany

Dimensions

Length
70 mm
Dimensions [mm]
M18 x 1 / L = 70
Overall Diameter
18 mm
Overall Height
70 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
100 Hz
Operating Temp. Range
32 Degrees to 212 Degrees F
IP Rating
IP68, IP69K
Includes
(2) Lock Nuts
Description/Special Features
All Metal Housing
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A012
Max. Current Load
100mA
Electrical Connection
M12
Display
switching status 4 x 90° LED, yellow
Electrical design
PNP
Materials
housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L)
Pressure rating [bar]
100
MTTF [years]
1258
Thread designation
M18 x 1
Embedded software included
yes
Special feature
Gold-plated contacts; Full-metal housing
Tightening torque [Nm]
50
Permanent current rating of switching output DC [mA]
100
Type of short-circuit protection
pulsed
Short-circuit protection
yes
Sensing range [mm]
5
Mounting
flush mountable
Hysteresis [% of Sr]
1...20
Note on pressure rating
sensing face
Current consumption [mA]
< 20
UL approval
Ta -25...70°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A012 File number UL E174191
Overload protection
yes
Items supplied
lock nuts: 2
Impact resistance
1 J
Full-metal housing
yes
Protection class
III
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 emission class B
Operating voltage [V]
10...30 DC
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.7 / aluminium: 0.5 / copper: 0.2
Housing
threaded type
Protection
IP 68; IP 69K
Ambient temperature [°C]
0...100
Max. voltage drop switching output DC [V]
2.5
Application
constant cleaning with aggressive cleaning agents; regular cleaning processes
Reverse polarity protection
yes
Switching frequency DC [Hz]
100
Operating distance [mm]
0...4.05
Ambient temperature [°C]
0...100
Electrical Installation Type
Direct Connector
Output Circuit Contact Form
NO
Number of Pins
4
Sensing Distance - Maximum
5 mm
Switching Frequency
100 Hz
Operating Temperature - Minimum
32 Degrees F
Operating Temperature - Maximum
212 Degrees F
Style
Cylindrical, Inductive
Output Circuit Number of Wires
3
DC Voltage Rating
10-30V DC
Body Stainless Steel Grade
316L
Output Circuit Type
PNP
Body Material
Stainless Steel
Output Circuit Current - Maximum
100 mA
Output Circuit Voltage - Maximum
2.5 V DC
AC Voltage Rating
Not Rated
Includes Indicator Lights
Indicator Lights Included
Sensing Face Shielding
Shielded

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 36V DC, Shielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 5 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP68, IP69K, Case Material 316L Stainless Steel, Length 70 mm, Operating Temp. Range 32 Degrees to 212 Degrees F, Max. Current Load 100mA
