  11. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded

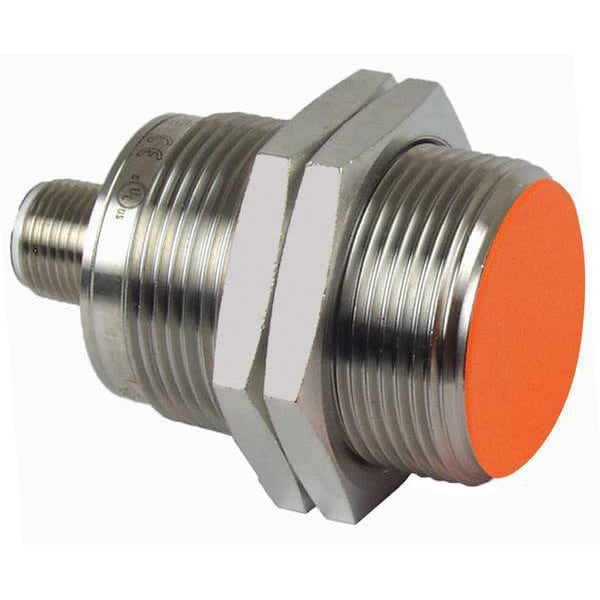

Ifm Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded II7102 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Shielded

  • Mfr # II7102

  • Zoro # G6915666

product price: $50.15
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Length
60 mm
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
200 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
II7102
Zoro #
G6915666
UPC #
-
Country of Origin
Germany

Dimensions

Length
60 mm
Dimensions [mm]
M30 x 1.5 / L = 60
Overall Height
60 mm
Overall Diameter
30 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
200 Hz
Includes
(2) Lock Nuts
IP Rating
IP67
Max. Current Load
100mA
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A001
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Overload And Short-Circuit Protection, Yellow LED Output Indication
Electrical Connection
M12
Display
switching status 1 x LED, yellow
Permanent current rating of switching output DC [mA]
100
Reverse polarity protection
yes
Ambient temperature [°C]
-25...70
Operating distance [mm]
0...8.1
Real sensing range Sr [mm]
10± 10 %
Protection class
III
Hysteresis [% of Sr]
3...15
Sensing range [mm]
10
Short-circuit protection
yes
UL approval
Ta -25...70°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A001 File number UL E174191
Items supplied
lock nuts: 2
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 emission class B
Electrical design
NPN
Thread designation
M30 x 1.5
Overload protection
yes
Special feature
Gold-plated contacts
Max. voltage drop switching output DC [V]
2.5
MTTF [years]
1455
Switching frequency DC [Hz]
200
Switch point drift [% of Sr]
-10...10
Materials
brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Current consumption [mA]
< 10
Operating voltage [V]
10...30 DC
Embedded software included
yes
Protection
IP 67
Mounting
flush mountable
Housing
threaded type
Ambient temperature [°C]
-25...70
Electrical Installation Type
Direct Connector
Includes Indicator Lights
Indicator Lights Included
DC Voltage Rating
10-30V DC
Body Material
Brass
Output Circuit Current - Maximum
100 mA
Output Circuit Number of Wires
3
Sensing Distance - Maximum
10 mm
Sensing Face Shielding
Shielded
Style
Cylindrical, Inductive
Output Circuit Voltage - Maximum
2.5 V DC
Output Circuit Type
NPN
Output Circuit Contact Form
NO
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Body Finish
Bronze Coated
AC Voltage Rating
Not Rated
Number of Pins
4
Switching Frequency
200 Hz

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 200 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 10 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, Case Material Nickel Plated Brass, Length 60 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
