  6. Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Unshielded

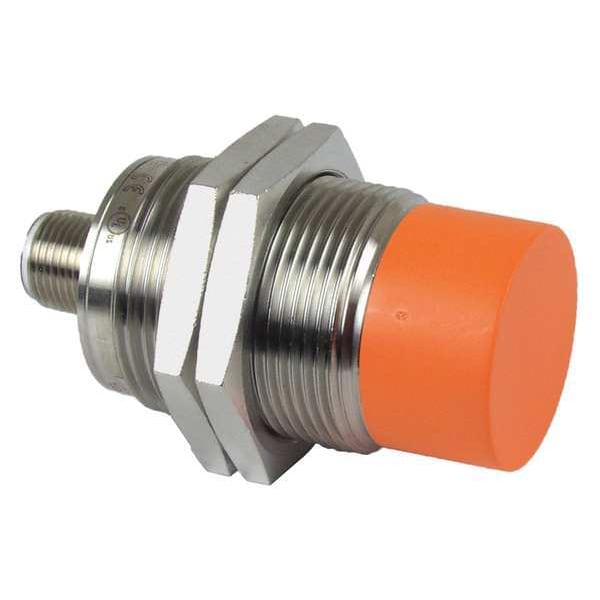

Ifm Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Unshielded IIS205 - main

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Unshielded

  • Mfr # IIS205

  • Zoro # G7007174

product price:  $60.95
/ea

Key Features

Style
Inductive, Cylindrical
Overall Diameter
30 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
10 to 30V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IIS205
Zoro #
G7007174
UPC #
-
Country of Origin
Germany

Dimensions

Overall Diameter
30 mm
Length
50 mm
Overall Height
50 mm

Details

Item
Proximity Sensor
Style
Inductive, Cylindrical
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
10 to 30V DC
Electrical Connection
M12
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
22 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A001
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
100 Hz
Operating Temp. Range
-13 Degrees to 158 Degrees F
Includes
(2) Lock Nuts
IP Rating
IP67
Description/Special Features
Overload And Short-Circuit Protection, Yellow LED Output Indication
Max. Current Load
100mA
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Current - Maximum
100 mA
Electrical Installation Type
Direct Connector
Includes Indicator Lights
Indicator Lights Included
Number of Pins
4
Body Finish
Bronze Coated
Operating Temperature - Maximum
158 Degrees F
Output Circuit Voltage - Maximum
2.5 V DC
Switching Frequency
100 Hz

Description

Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 100 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 22 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 50 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
