  11. Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass/PBT, 2 m, Bare Wire, 2 Wires, Shielded

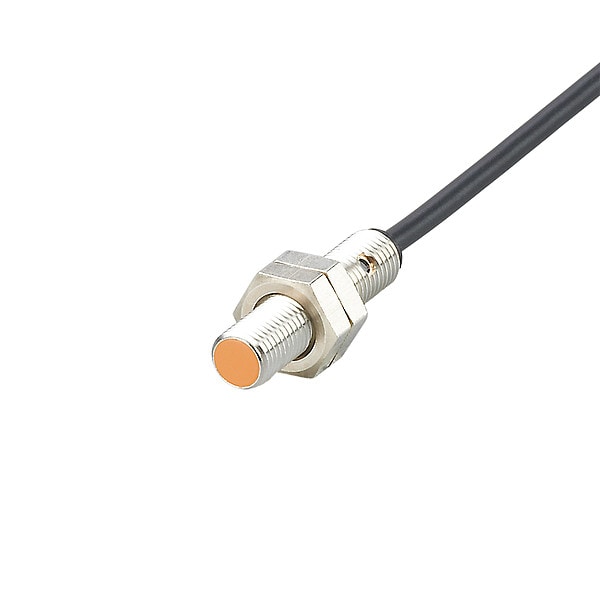

Ifm Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass/PBT, 2 m, Bare Wire, 2 Wires, Shielded IE5207 - main

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass/PBT, 2 m, Bare Wire, 2 Wires, Shielded

  • Mfr # IE5207

  • Zoro # G7623831

product price: $38.19
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Length
35 mm
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
2,000 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IE5207
Zoro #
G7623831
UPC #
094720864851
Country of Origin
Romania

Dimensions

Length
35 mm
Dimensions [mm]
M8 x 1 / L = 35
Overall Height
35 mm
Cable Length
2 m
Overall Diameter
8 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
2,000 Hz
Max. Current Load
200mA
IP Rating
IP67
Description/Special Features
Yellow LED Output Indication
Includes
(2) Lock Nuts
Operating Temp. Range
-13 Degrees to 158 Degrees F
Standards
EN 61000-4-2 ESD, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted
Electrical Connection
Bare Wire
Protection class
III
Switching frequency DC [Hz]
1300
Switch point drift [% of Sr]
-10...10
Overload protection
no
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Display
switching status 1 x LED, yellow
Permanent current rating of switching output DC [mA]
200
Protection
IP 67
Max. voltage drop switching output DC [V]
3.5
Operating voltage [V]
10...36 DC
Short-circuit protection
no
Operating distance [mm]
0...0.81
Mounting
flush mountable
Max. leakage current [mA]
0.8
Materials
brass white bronze coated; PBT
Ambient temperature [°C]
-25...80
Minimum load current [mA]
4
Thread designation
M8 x 1
Reverse polarity protection
yes
MTTF [years]
4603
Tightening torque [Nm]
A = 5 mm: 1 Nm; B: 4 Nm
Real sensing range Sr [mm]
1± 10 %
Sensing range [mm]
1
Electrical design
PNP/NPN
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V
Items supplied
lock nuts: 2
Connection
Cable: 2 m, PVC; 2 x 0.14 mm²
Hysteresis [% of Sr]
1...15
Housing
threaded type
Ambient temperature [°C]
-25...80
Body Material
Brass/PBT
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Voltage - Maximum
3.5 V DC
AC Voltage Rating
Not Rated
Electrical Installation Type
Prewired Cable
Output Circuit Number of Wires
2
Sensing Distance - Maximum
1 mm
Operating Temperature - Maximum
176 Degrees F
Output Circuit Type
NPN/PNP
DC Voltage Rating
10-36V DC
Body Finish
Bronze Coated
Style
Cylindrical, Inductive
Sensing Face Shielding
Shielded
Output Circuit Contact Form
NO
Includes Indicator Lights
Indicator Lights Included
Output Circuit Current - Maximum
200 mA
Switching Frequency
1,300 Hz

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 10 to 36V DC, Shielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 2 Wire PNP/NPN, Max. Detecting Distance 1 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 35 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
