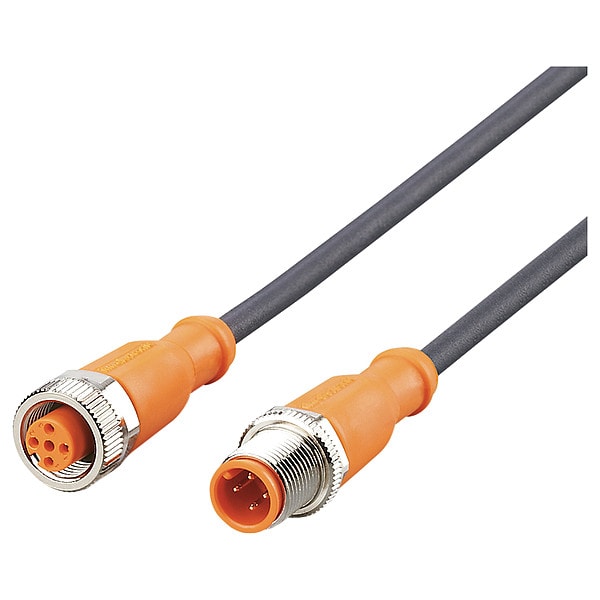

Double-Ended Cordset, 10 m L Cable

  • Mfr # EVC108
  • Zoro # G607877569
product price:
$
40.25
/ea

Key Features

Product Type
Double Ended
End 1 Number of Pins
4
Wire Size
0.34 mm²
End 2 Number of Pins
4
Cable Length
10 m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EVC108
Zoro #
G607877569
UPC #
-
Country of Origin
Poland

Dimensions

Wire Size
0.34 mm²
Cable Length
10 m
Fits Chest Size
High Protection Rating for the Requirements of Harsh Industrial Environments, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Resistant to Oils and Coolants, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism

Details

Item
Cordset
Product Type
Double Ended
End 1 Number of Pins
4
End 2 Number of Pins
4
Cable Jacket Material
PUR
Cable Jacket Color
Black
IP Rating
IP65, IP67, IP68, IP69K
Max. Amps
4 A
Maximum Operating Temperature
194 Degrees F
Standards
CE, cULus, EAC, UKCA
Max. Voltage
250 V AC, 300 V DC
End 1 Connection Type
M12
End 2 Connection Type
M12
Features
High Protection Rating for the Requirements of Harsh Industrial Environments, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Resistant to Oils and Coolants, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism
End 2 Gender
Female
Number of Wires
4
End 1 Mounting Orientation
Straight
End 1 Gender
Male
Minimum Operating Temperature
-13 Degrees F
End 1 Number of Keyways
1
End 2 Mounting Orientation
Straight
Cable Type
Round
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Connection
Cable: 10 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Ambient temperature [°C]
-25...90
Max. current load total [A]
4
Electrical connection
Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
Materials
housing: TPU orange; Sealing: FKM
Storage humidity [%]
10...100
Protection class
II
Operating voltage [V]
< 250 AC / < 300 DC
Storage temperature [°C]
-25...55
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Material nut
brass, nickel-plated
Ambient temperature (moving) [°C]
-25...90

Description

Double-Ended Cordset, End 1 Gender Male, End 1 Number of Pins 4, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Female, End 2 Mounting Orientation Straight, End 2 Number of Pins 4, End 2 Connection Type M12, Cable Length 10 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 4 A, Wire Size 0.34 sq mm, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K
