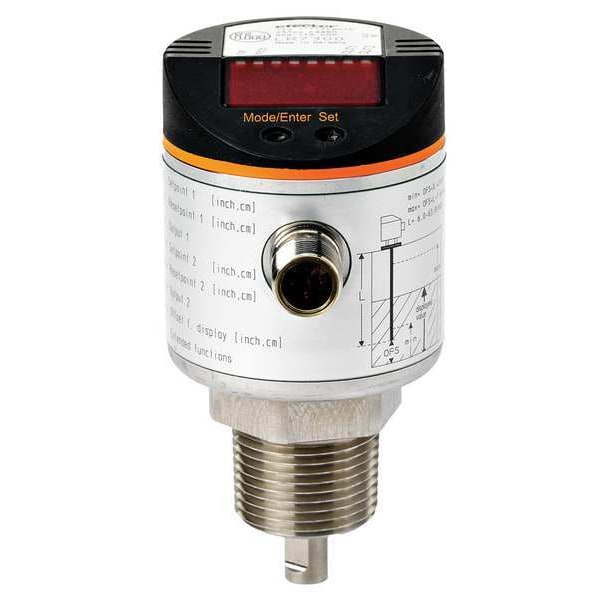

Ifm Electronic Level Sensor3/4 In NPT LR3300 - main

Electronic Level Sensor3/4 In NPT

  • Mfr # LR3300

  • Zoro # G6809984

product price: $684.99
/ea
Free Shipping & Returns

Key Features

Mounting
3/4 in NPT
Range
63 in
Accuracy
+/-7 mm
Resolution
5 mm
Overall Length
2.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LR3300
Zoro #
G6809984
UPC #
-
Country of Origin
Romania

Dimensions

Overall Length
2.5 in
Width
2.4 in
Height
3.4 in
Overall Dia.
1.96 in
Stem Length
63 in
Probe length L [mm]
100...1600
Float Diameter
1/4 in
Connection Size
3/4 in

Details

Item
Electronic Level Sensor
Mounting
3/4 in NPT
Range
63 in
Accuracy
+/-7 mm
Resolution
5 mm
Input Voltage
18 to 30V DC
Display
LED
Dead Band
5.9 in
Enclosure Rating
IP67
Material
Stainless Steel
Temp. Range
32 to 176 Degrees F
Stem Material
316 Stainless Steel
Standards
IEC 61131-9 CDV
Body Material
Stainless Steel
Voltage
18 to 30V DC
Product Type
Guided Wave Radar
Electrical design
PNP
Process data analogue
1
Materials
stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; PBT; PC; PEI; TPE-V
Temperature drift per 10 K
± 0.2 %
Transmission type
COM2 (38,4 kBaud)
Vacuum resistance [mbar]
-1000
Required master port type
A
In steps of [mm]
5
Measuring principle
guided wave radar
Profiles
no profile
Zero signal (current) [mA]
4
Number of digital outputs
1
Dielectric constant of the medium
≥5
Active range A [mm]
L-40
Power-on delay time [s]
< 3
IO-Link revision
1.1
Number of inputs and outputs
Number of digital outputs: 1; Number of analogue outputs: 1
Operating voltage [V]
18...30 DC
Zero signal (voltage) [V]
0
Storage temperature [°C]
-40...85
Number of analogue outputs
1
Shock resistance
DIN EN 60068-2-27 50 g (11 ms) / 25 g (6 ms) with reference rod 0.5 m
Offset error [mm]
5
Protection class
III
SDCI standard
IEC 61131-9 CDV
Process data binary
1
Special feature
Gold-plated contacts
Min. process cycle time [ms]
2.3
Current consumption [mA]
< 30
Communication interface
IO-Link
MAWP (for applications according to CRN) [bar]
16
Overload protection
yes
Short-circuit protection
yes
Resolution [mm]
1
Repeatability [mm]
± 5
Inactive range I1 / I2 [mm]
30 / 10
Analogue voltage output [V]
0...10, invertible; (scalable)
Process connection
3/4" NPT
UL approval
UL Approval no. H006 File number UL E174191
Set point SP [mm]
≥15...L-30
Recommended media
water; hydrous media
Output signal
switching signal; analogue signal; IO-Link
Reset point rP [mm]
≥10...L-35
Protection
IP 67
Full signal (current) [mA]
20
Output function
normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC [V]
2.5
Full signal (voltage) [V]
10
Reverse polarity protection
yes
Min. load resistance [Ω]
2000
Media
Liquids
Measuring error [mm]
± 7
Analogue current output [mA]
4...20, invertible; (scalable)
EMC
DIN EN 61000-6-2 DIN EN 61000-6-3 in a closed metal tank DIN EN 61000-6-4 in plastic or open metal tanks
Hysteresis [mm]
> 5
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Total number of outputs
2
Materials (wetted parts)
stainless steel (1.4305 / 303); probe connection: stainless steel (1.4435 / 316L); PTFE; FKM
Type of short-circuit protection
thermal, pulsed
MTTF [years]
196
Max. load [Ω]
500
Permanent current rating of switching output DC [mA]
200
SIO mode
yes
Vibration resistance
DIN EN 60068-2-6 5 g (10...2000 Hz) / 1 g (5...200 Hz) with reference rod 0.5 m
Pressure rating [bar]
16
Ambient temperature [°C]
-25...60
Process temperature [°C]
-25...80; (90 < 1 h ; see note under remarks)
Sampling rate [Hz]
4
Number of Outputs - Analog
1
Nameplate Voltage
18/30V DC
For Media Type
Water
Mounting Orientation
Vertical
Number of Outputs - Digital
1
Media Temperature - Maximum
176 Degrees F
Connection Type
NPT
Operating Pressure - Maximum
232 psi
Probe Material
316 Stainless Steel
Output Wire Configuration
4-Wire
Ambient temperature [°C]
-25...60
Min. load resistance [Ω]
2000
Max. load [Ω]
500
Process temperature [°C]
-25...80; (90 < 1 h ; see note under remarks)
Storage temperature [°C]
-40...85
Measuring principle
guided wave radar

Description

Electronic Level Sensor, Product Type Guided Wave Radar, Connection Size 3/4 in, For Media Type Water, Connection Type NPT, Body Material Stainless Steel, Accuracy +/-7 mm, Range 63 in, Stem Length 63 in, Operating Pressure - Maximum 232 psi, Media Temperature - Maximum 176 Degrees F, Mounting Orientation Vertical, Enclosure Rating IP67, Number of Outputs - Analog 1, Float Diameter 1/4 in, Number of Outputs - Digital 1, Float Length Not Applicable, Output Wire Configuration 4-Wire

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
