  9. Flow Meter, Magnetic, 50 LPM
Shop All Flowmeters
Ifm

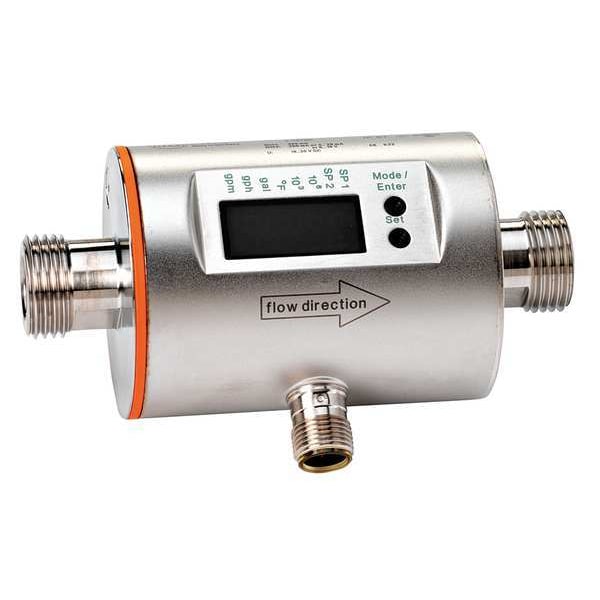

Flow Meter, Magnetic, 50 LPM

product price: $838.99
/ea
Free Shipping & Returns
Delivery to commercial address only
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material Stainless Steel
  • For Pipe Size 3/4 in
  • Flow Material Conductive Media
  • Connection Size 3/4 in
  • Connection Type BSPP
See all product information

Product Information

  • Brand Ifm
  • MFR # SM7004
  • Zoro # G7146002
  • Country of Origin Germany
  • Category Flowmeters

Dimensions

For Pipe Size 3/4 in
Connection Size 3/4 in
Length (In.) 4 in
Fitting Size (In.) 3/4
Overall Length 4 in

Details

Item Electronic Flowmeter
Housing Material Stainless Steel
Flow Material Conductive Media
Connection Type BSPP
Max. Pressure 232 psi
Max. Viscosity 370 SUS
Wetted Materials 316L Stainless Steel, FKM, PEEK
Flow Range 0.2 to 50 gpm
Fluid Temp. Range -4 Degrees to 176 Degrees F
Display Type LED
Sensor Type Magnetic
Ambient Temperature 14 Degrees to 140 Degrees F
Pressure Rating (PSI) 232
Display Units cu m, L, Lpm, M3PH
Flow Range (LPM) 0.2 to 50
Fluid Temp. Range (Deg. F) -4 to 176
Accuracy (%) +/-2
Output Type 4-20 mA
Shaft Material Stainless Steel
Seal Material Stainless Steel
Standards CE Certified, CRN, CSA Certified, cULus Listed, EC 1935/2004, IO-Link, UKCA
Includes Flow Rate Adjustment Knob No
Operating Pressure - Maximum 232 psi
Unit Of Measure Liters
Compatible Flow Material Conductive Liquids, Water, Water-Like Liquids
Voltage - Maximum 30V DC
Media Temperature - Maximum 70 Degrees C
Accuracy +/-2%
Flow Rate - Minimum 0.02 gpm
Flow Rate - Maximum 50 lpm
Flowmeter Type Electromagnetic
Wetted Material 316L Stainless Steel, Viton, PEEK
Includes Pressure Gauge No
Media Temperature - Minimum -10 Degrees C
Includes Totalizer No
Product Type Electronic Flowmeter
O-Ring Material Viton
Mounting Orientation Universal
Viscosity - Maximum 70 SUS

Description

Electronic Flowmeter, Product Type Electronic Flowmeter, Flowmeter Type Electromagnetic, Accuracy +/-2 Percent, Connection Size 3/4 in, Connection Type BSPP, Compatible Flow Material Conductive Liquids, Water, Water-Like Liquids, Media Temperature - Maximum 70 Degrees C, Media Temperature - Minimum -10 Degrees C, Viscosity - Maximum 70 SUS, Voltage - Maximum 30V DC, Housing Material Stainless Steel, O-Ring Material Viton, Seal Material Stainless Steel, Shaft Material Stainless Steel
