  9. Flow Meter, Magnetic, 6.6 GPM
Shop All Flowmeters
Ifm

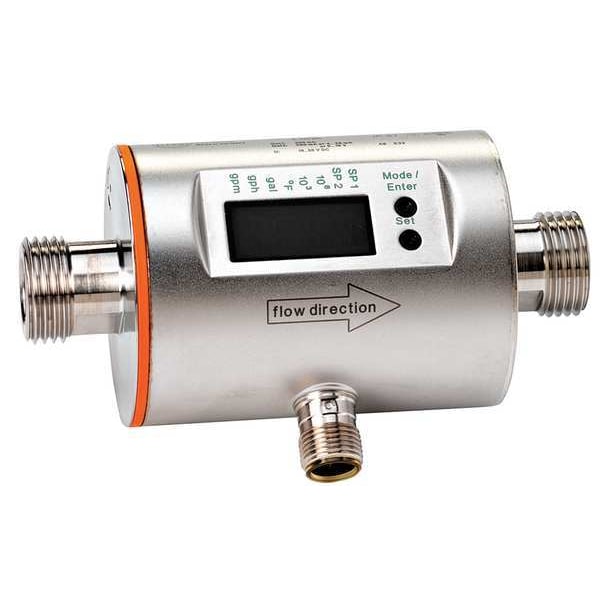

Flow Meter, Magnetic, 6.6 GPM

product price: $718.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material Stainless Steel
  • For Pipe Size 1/2 in
  • Flow Material Conductive Media
  • Connection Size 1/2 in
  • Connection Type BSPP
See all product information

Product Information

  • Brand Ifm
  • MFR # SM6001
  • Zoro # G6566831
  • Country of Origin Germany
  • Category Flowmeters

Dimensions

For Pipe Size 1/2 in
Connection Size 1/2 in
Length (In.) 4 in
Fitting Size (In.) 1/2
Overall Width 110 mm
Overall Length 54 mm

Details

Item Electronic Flowmeter
Housing Material Stainless Steel
Flow Material Conductive Media
Connection Type BSPP
Max. Pressure 232 psi
Wetted Materials 316L Stainless Steel, FKM, PEEK
Max. Viscosity 370 SUS
Flow Range 0.03 to 6.604 gpm
Fluid Temp. Range -4 Degrees to 176 Degrees F
Output Type 4-20 mA
Accuracy (%) +/-2
Display Type LED
Flow Range (GPM) 0.03 to 6.604
Ambient Temperature 14 Degrees to 140 Degrees F
Fluid Temp. Range (Deg. F) -4 to 176
Sensor Type Magnetic
Pressure Rating (PSI) 232
Display Units gal, gph, gpm, Temp
Seal Material Stainless Steel
Shaft Material Stainless Steel
Standards CE Certified, CRN Registered, cULus Listed, EC 1935/2004, IO-Link, UKCA
Voltage - Maximum 30V DC
Viscosity - Maximum 70 SUS
Media Temperature - Minimum 14 Degrees F
Pulse Rate 100 pulses/gal
O-Ring Material Viton
Media Temperature - Maximum 158 Degrees F
Includes Totalizer Yes
Operating Pressure - Maximum 232 psi
Accuracy +/- (0.8 mw + 0.5 mew)
Mounting Orientation Universal
Wetted Material 316L Stainless Steel, Viton, PEEK
Compatible Flow Material Conductive Liquids, Water, Water-Like Liquids
Flowmeter Type Electromagnetic
Flow Rate - Minimum 0.03 gpm
Product Type Electronic Flowmeter
Includes Flow Rate Adjustment Knob No
Flow Rate - Maximum 6.6 gpm
Includes Pressure Gauge No
Unit Of Measure Gallons

Description

Electronic Flowmeter, Product Type Electronic Flowmeter, Flowmeter Type Electromagnetic, Accuracy +/- (0.8 mw + 0.5 mew), Connection Size 1/2 in, Connection Type BSPP, Compatible Flow Material Conductive Liquids, Water, Water-Like Liquids, Media Temperature - Maximum 158 Degrees F, Media Temperature - Minimum 14 Degrees F, Viscosity - Maximum 70 SUS, Voltage - Maximum 30V DC, Housing Material Stainless Steel, O-Ring Material Viton, Seal Material Stainless Steel, Shaft Material Stainless Steel
