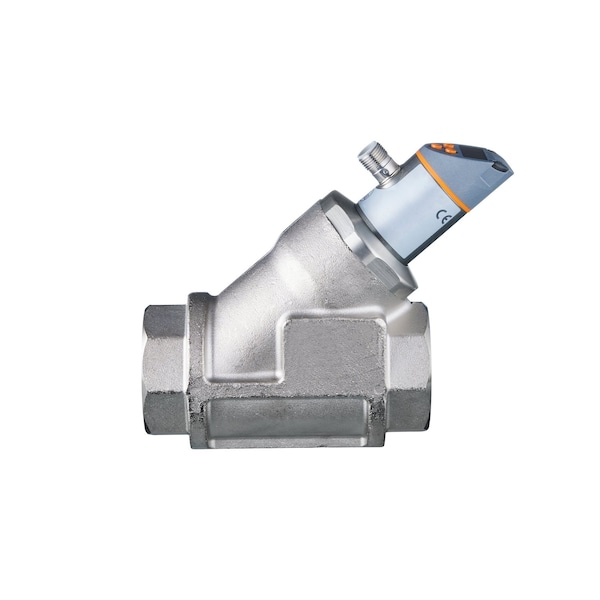

Flow Switch, 157mm L, 133mm H, 18-30V DC
Mfr # SBN257
Zoro # G822808812
product price:Â
$
691.99
/ea
Free Shipping & Returns
Key Features
Flow Rate - Maximum
50 gpm
Flow Rate - Minimum
1 gpm
Switch Enclosure
IP65, IP67
Ambient Temperature - Minimum
32 Degrees F
Nameplate Voltage
18 to 30V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- SBN257
- Zoro #
- G822808812
- UPC #
- -
- Country of Origin
- Poland
- Flow Rate - Maximum
- 50 gpm
- Flow Rate - Minimum
- 1 gpm
- Switch Enclosure
- IP65, IP67
- Ambient Temperature - Minimum
- 32 Degrees F
- Nameplate Voltage
- 18 to 30V DC
- Connection Type
- NPT
- Transmission Type
- COM2 (38.4 kBaud)
- Item
- Flow Switch
- Communication Interface
- IO-Link
- Set Point Configuration
- Adjustable
- Filter Rating - Maximum
- 200 micron
- Housing Material
- Stainless Steel
- Hazardous Location Specification
- Not Rated
- Wetted Material
- 316 Stainless Steel, Brass
- Switch Position
- Normally Closed, Normally Open
- Standards
- CE, cULus Approved
- Media Temperature - Maximum
- 104 Degrees F
- Contact Rating (DC)
- 150 mA @ 30V
- Ambient Temperature - Maximum
- 140 Degrees F
Description
Flow Switch, Ambient Temperature - Maximum 140 Degrees F, Ambient Temperature - Minimum 32 Degrees F, Connection Size 1 1/2 in, Connection Type NPT, Contact Rating (DC) 150 mA @ 30V, Filter Rating - Maximum 200 micron, Flow Rate - Maximum 50 gpm, Flow Rate - Minimum 1 gpm, Hazardous Location Specification Not Rated, Housing Material Stainless Steel, Media Temperature - Maximum 104 Degrees F, Nameplate Voltage 18 to 30V DC, Overall Height 133 mm, Overall Length 157 mm, Overall Width 60 mm
