  13. Flow Switch, 18 mm Connection, SS

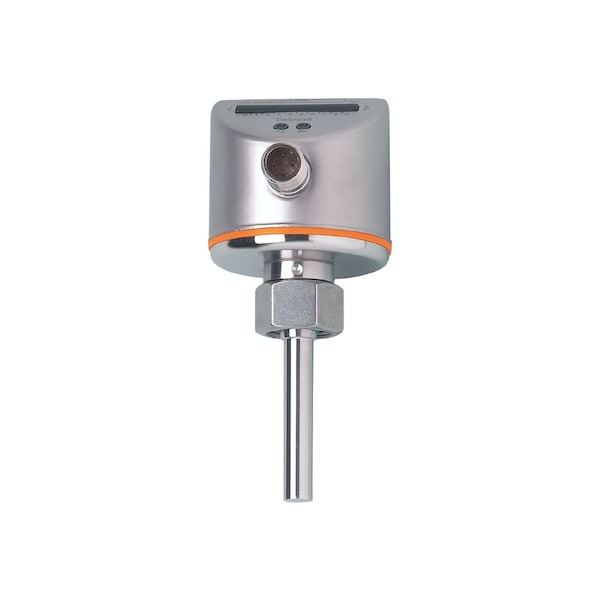

Ifm Flow Switch, 18 mm Connection, SS SI5010 - main

Flow Switch, 18 mm Connection, SS

  • Mfr # SI5010

  • Zoro # G707967450

product price: $426.99
/ea
Free Shipping & Returns

Key Features

Standards
CRN, cULus Approved, DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, IO-Link, UK CA
Maximum Media Temperature
80 Degrees C
Maximum Ambient Temperature
80 Degrees C
Minimum Media Temperature
-25 Degrees C
Minimum Ambient Temperature
-25 Degrees C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SI5010
Zoro #
G707967450
UPC #
-
Country of Origin
Romania

Dimensions

Connection Size
7/10 in
Overall Length
63 mm
Overall Width
50 mm
Overall Height
113 mm
Probe length L [mm]
45
Dimensions [mm]
M18 x 1.5

Details

Item
Flow Switch
Standards
CRN, cULus Approved, DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, IO-Link, UK CA
Maximum Media Temperature
80 Degrees C
Maximum Ambient Temperature
80 Degrees C
Minimum Media Temperature
-25 Degrees C
Minimum Ambient Temperature
-25 Degrees C
Housing Material
Stainless Steel
Wetted Materials
Stainless Steel
Wetted Material
Stainless Steel, Viton
Contact Rating (DC)
250 mA
Switch Type
SPST
Switch Position
Normally Closed, Normally Open
Nameplate Voltage
19-36 V DC
Flow Rate - Minimum
2 mL/min
Ambient Temperature - Minimum
-13 Degrees F
Ambient Temperature - Maximum
176 Degrees F
Flow Switch Type
Thermal-Dispersion
Connection Type
NPT
Media Temperature - Minimum
-13 Degrees F
Flow Rate - Maximum
900 gpm
Set Point Configuration
Adjustable
Switch Enclosure
IP67
Media Temperature - Maximum
176 Degrees F
Connection
Connector: 1 x M12; coding: A
Power-on delay time [s]
10
Note on repeatability
for water 5...100 cm/s; 25°C Factory setting
Storage temperature [°C]
-25...100
Pressure rating [bar]
300
Reverse polarity protection
yes
Materials
stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X
Materials (wetted parts)
stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Thread designation
M18 x 1.5
SIO mode
yes
Min. process cycle time [ms]
3
Shock resistance
DIN IEC 60068-2-27 50 g (11 ms)
Operating voltage [V]
18...36 DC
Protection
IP 65; IP 67
Response time [s]
1...10
Overload protection
yes
Permanent current rating of switching output DC [mA]
250
Hysteresis [cm/s]
2...5; (for water 5...100 cm/s; 25°C; Factory setting)
Output function
normally open / normally closed; (parameterisable)
Temperature drift [cm/s x 1/K]
0.1; (for water 5...100 cm/s; 10...70°C)
Protection class
III
Transmission type
COM2 (38,4 kBaud)
Media
Liquids; Gases
Type of short-circuit protection
pulsed
Process connection
M18 x 1,5 internal thread
Short-circuit protection
yes
Temperature gradient [K/min]
300
Max. voltage drop switching output DC [V]
2.5
EMC
DIN EN 61000-6-2 DIN EN 61000-6-3
Medium temperature [°C]
-25...80
Number of digital outputs
1
Adjustment of the switch point
pushbutton
Profiles
Smart Sensor: Process Data Variable; Device Identification
Ambient temperature [°C]
-25...80
Switch point accuracy [cm/s]
± 2...± 10; (for water 5...100 cm/s; 25°C; Factory setting)
Setting range [cm/s]
3...300, 200...3000
Output signal
switching signal; IO-Link; (configurable)
Communication interface
IO-Link
Current consumption [mA]
< 60
Repeatability [cm/s]
1...5
Required master port type
A
MAWP (for applications according to CRN) [bar]
208
Display
function 10 x LED, three-colour
Greatest sensitivity [cm/s]
3...100, 200...800
Process data binary
2
Vibration resistance
DIN EN 60068-2-6 20 g (55...2000 Hz)
SDCI standard
IEC 61131-9
Total number of outputs
1
Number of inputs and outputs
Number of digital outputs: 1
MTTF [years]
298
IO-Link revision
1.1
Process data analogue
2
Electrical design
PNP

Description

Flow Switch, Ambient Temperature - Maximum 176 Degrees F, Ambient Temperature - Minimum -13 Degrees F, Connection Size 7/10 in, Connection Type NPT, Contact Rating (AC) Not Applicable, Contact Rating (DC) 250 mA, Filter Rating - Maximum Not Applicable, Flow Rate - Maximum 900 gpm, Flow Rate - Minimum 2 mL/min, Flow Switch Type Thermal-Dispersion, For Pipe Size Not Applicable, Frequency Not Applicable, Hazardous Location Specification Not Applicable, Housing Material Stainless Steel

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
