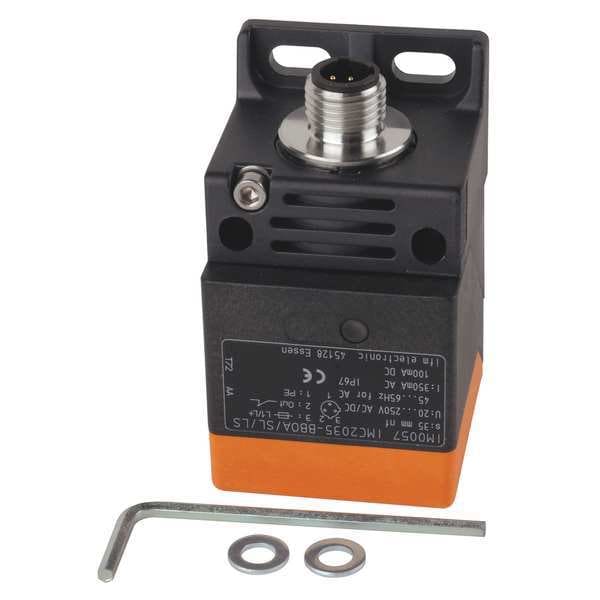

Inductive, Rectangular Proximity Sensor, PPE, 1/2 in Connector, 2 Wires, Unshielded

  • Mfr # IM0057

  • Zoro # G6703243

product price:
$
101.99
/ea
Free Shipping & Returns

Key Features

Style
Inductive, Rectangular
Proximity Sensing Method
Inductive
Body Material
PPE
Proximity Sensor Power Requirement
24 to 240V AC/DC
Electrical Connection
1/2 in Connector
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
IM0057
Zoro #
G6703243
UPC #
-
Country of Origin
Romania

Dimensions

Length
66 mm
Width
40 mm
Depth
40 mm
Overall Depth
40 mm
Overall Height
66 mm
Overall Width
40 mm

Details

Item
Proximity Sensor
Style
Inductive, Rectangular
Proximity Sensing Method
Inductive
Body Material
PPE
Proximity Sensor Power Requirement
24 to 240V AC/DC
Electrical Connection
1/2 in Connector
Output Circuit Type
AC/DC-Type
Output Circuit Number of Wires
2
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
35 mm
AC Voltage Rating
20-250V AC
DC Voltage Rating
20-250V DC
Output Circuit Contact Form
NC
Standards
EN 60947-5-2, EN 55011
Proximity Sensor Electrical Connection
3 Pin 1/2-20 UNF Male Connector
Proximity Sensor Operating Frequency
25 Hz AC/50 Hz DC
Description/Special Features
Yellow LED Output Indication
Max. Current Load
250/100mA
IP Rating
IP67
Operating Temp. Range
-13 Degrees to 158 Degrees F
Switching frequency AC [Hz]
20
Max. voltage drop switching output AC [V]
6.5
Special feature
Increased sensing range
EMC
EN 60947-5-2 EN 55011 class B
Short-circuit proof
no
Hysteresis [% of Sr]
3...15
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤2 A; fast acting
Housing
rectangular
Operating voltage [V]
20...250 AC/DC
Minimum load current [mA]
1.9
Increased sensing range
yes
Permanent current rating of switching output DC [mA]
100
Ambient temperature [°C]
-25...70
Reverse polarity protection
no
Materials
housing: PPE; sensing face: PPE orange; end cap: PPS; clamp: PPS black; screw: steel galvanised
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Max. voltage drop switching output DC [V]
6
Operating distance [mm]
0...28.3
Protection
IP 67
Switching frequency DC [Hz]
50
Permanent current rating of switching output AC [mA]
250; (350 (...50°C))
Mounting
non-flush mountable
Sensing range [mm]
35
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC)
Protection class
I
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Overload protection
no
Display
switching status 1 x LED, yellow
MTTF [years]
600
Ambient temperature [°C]
-25...70
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Electrical Installation Type
Direct Connector
Number of Pins
3
Output Circuit Voltage - Maximum
6 V DC
Sensing Method
Inductive
Switching Frequency
20 Hz (AC), 50 Hz (DC)
Output Circuit Current - Maximum
250 mA
Includes Indicator Lights
Indicator Lights Included
Body Finish
Bronze Coated

Description

Inductive Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 24 to 240V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/50 Hz DC, Proximity Sensor Output Circuit Type 3 Wire, Max. Detecting Distance 35 mm, Proximity Sensor Electrical Connection 3 Pin 1/2-20 UNF Male Connector, Output Mode NC, IP Rating IP67, Case Material PPE, PPS, Length 66 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250/100mA
