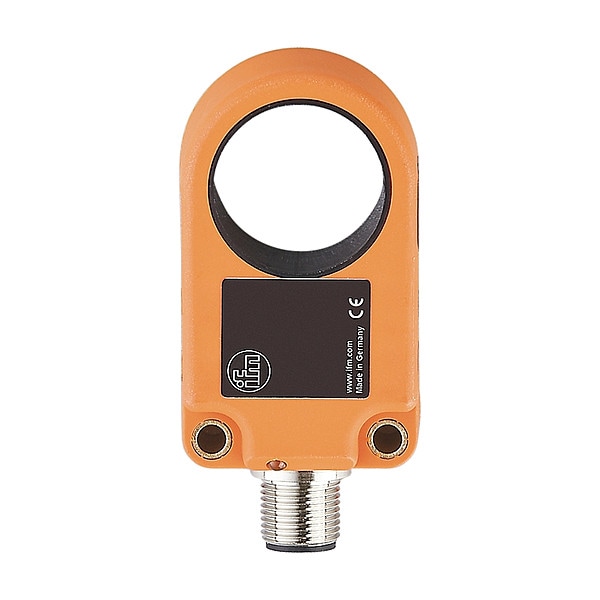

Inductive, Ring Proximity Sensor, Polyamide, M12, 3 Wires
Mfr # I7R214
Zoro # G512470701
product price:Â
$
239.99
/ea
Free Shipping & Returns
Key Features
Style
Inductive, Ring
Body Material
Polyamide
Electrical Connection
M12
Output Circuit Type
NPN
Output Circuit Number of Wires
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- I7R214
- Zoro #
- G512470701
- UPC #
- -
- Country of Origin
- United States
- Item
- Proximity Sensor
- Style
- Inductive, Ring
- Body Material
- Polyamide
- Electrical Connection
- M12
- Output Circuit Type
- NPN
- Output Circuit Number of Wires
- 3
- AC Voltage Rating
- Not Rated
- DC Voltage Rating
- 10-35V DC
- Output Circuit Contact Form
- NO/NC
- Standards
- CCC, CE, cRUus, cULus, EU Declaration of Conformity, MTTFd, REACH, RoHS, UL Listed
- IP Rating
- IP67
- Operating Temperature - Minimum
- -13 Degrees F
- NEMA Enclosure Rating
- 12, 13, 4X
- Number of Pins
- 3
- Electrical Installation Type
- Direct Connector
- Output Circuit Current - Maximum
- 200 mA
- Load Current - Maximum
- 200 mA
- Features
- Insensitive to Dirt, Static Operating Principle
- Series
- I7R Ring Sensor
- Operating Temperature - Maximum
- 158 Degrees F
- Includes Indicator Lights
- Indicator Lights Included
- Output Circuit Voltage - Maximum
- 33 V DC
- Sensing Method
- Inductive
Description
Inductive Ring Proximity Sensor, IP Rating IP67, Standards CCC, CE, cRUus, cULus, EU Declaration of Conformity, MTTFd, REACH, RoHS, UL Listed, Includes Not Applicable
