  11. Level Sensor, G3/4 NPT, 2x NO/NC
Shop All Level Sensors
Ifm

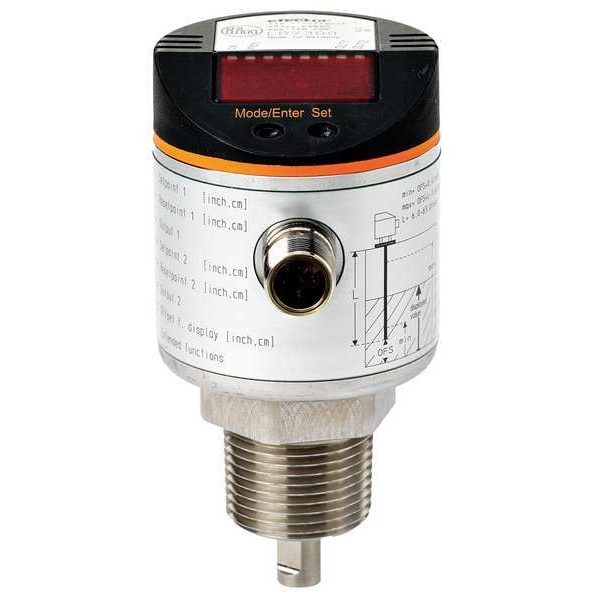

Level Sensor, G3/4 NPT, 2x NO/NC

product price: $569.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Range 63 in
  • Mounting G3/4
  • Accuracy +/-7 mm
  • Resolution 5 mm
  • Overall Length 2.5 in
See all product information

Product Information

Dimensions

Overall Length 2.5 in
Height 3.4 in
Overall Dia. 1.96 in
Width 2.4 in
Stem Length 63 in
Probe length L [mm] 100...1600
Float Diameter 1/4 in
Connection Size 3/4 in

Details

Item Electronic Level Sensor
Range 63 in
Mounting G3/4
Accuracy +/-7 mm
Resolution 5 mm
Enclosure Rating IP67
Input Voltage 18 to 30V DC
Material Stainless Steel
Dead Band 5.9 in
Temp. Range 32 to 176 Degrees F
Display LED
Standards IEC 61131-9 CDV
Stem Material 316 Stainless Steel
Body Material Stainless Steel
Voltage 18 to 30V DC
Product Type Guided Wave Radar
Storage temperature [°C] -40...85
Connection Connector: 1 x M12; coding: A; Contacts: gold-plated
Min. process cycle time [ms] 2.3
Media Liquids
Measuring error [mm] ± 7
SIO mode yes
Transmission type COM2 (38,4 kBaud)
Shock resistance DIN EN 60068-2-27 50 g (11 ms) / 25 g (6 ms) with reference rod 0.5 m
Inactive range I1 / I2 [mm] 30 / 10; (when set to oil and oil based media: 30 / 30)
Special feature Gold-plated contacts
Hysteresis [mm] > 5
Dielectric constant of the medium ≥1,8; (for media with a dielectric constant of 1.8...5 (e.g. oils), a coaxial pipe is needed for operation)
Number of inputs and outputs Number of digital outputs: 2
Recommended media water; hydrous media; oils; oil-based media
Pressure rating [bar] 16
EMC DIN EN 61000-6-2 DIN EN 61000-6-3 in a closed metal tank DIN EN 61000-6-4 in plastic or open metal tanks
Current consumption [mA] < 30
Max. voltage drop switching output DC [V] 2.5
Reset point rP [mm] ≥10...L-35
Electrical design PNP
Resolution [mm] 1
Total number of outputs 2
Communication interface IO-Link
Required master port type A
Measuring principle guided wave radar
Reverse polarity protection yes
Profiles no profile
Type of short-circuit protection thermal, pulsed
Temperature drift per 10 K ± 0.2 %
Repeatability [mm] ± 5
MAWP (for applications according to CRN) [bar] 16
Ambient temperature [°C] -25...60
In steps of [mm] 5
Overload protection yes
Materials (wetted parts) stainless steel (1.4305 / 303); probe connection: stainless steel (1.4435 / 316L); PTFE; FKM; Sealing: NBR reinforced fibre
MTTF [years] 233
Vibration resistance DIN EN 60068-2-6 5 g (10...2000 Hz) / 1 g (5...200 Hz) with reference rod 0.5 m
Power-on delay time [s] < 3
Protection class III
Protection IP 67
Process connection G 3/4 external thread
Permanent current rating of switching output DC [mA] 200
Active range A [mm] L-40; (when set to oil and oil based media: L-60)
UL approval UL Approval no. H007 File number UL E174191
Operating voltage [V] 18...30 DC
Output signal switching signal; IO-Link
Set point SP [mm] ≥15...L-30
Output function normally open / normally closed; (parameterisable)
Process data binary 2
SDCI standard IEC 61131-9 CDV
Process temperature [°C] -25...80; (90 < 1 h ; see note under remarks)
Sampling rate [Hz] 4
Process data analogue 1
Materials stainless steel (1.4301 / 304); stainless steel (1.4404 / 316L); FKM; PBT; PC; PEI; TPE-V
Offset error [mm] 5
IO-Link revision 1.1
Vacuum resistance [mbar] -1000
Number of digital outputs 2
Short-circuit protection yes
Nameplate Voltage 18/30V DC
Probe Material 316 Stainless Steel
Operating Pressure - Maximum 232 psi
For Media Type Oils, Water
Output Wire Configuration 4-Wire
Number of Outputs - Digital 2
Media Temperature - Maximum 176 Degrees F
Mounting Orientation Vertical
Process temperature [°C] -25...80; (90 < 1 h ; see note under remarks)
Storage temperature [°C] -40...85
Ambient temperature [°C] -25...60
Measuring principle guided wave radar

Description

Electronic Level Sensor, Product Type Guided Wave Radar, Connection Size 3/4 in, For Media Type Oils, Water, Body Material Stainless Steel, Accuracy +/-7 mm, Range 63 in, Stem Length 63 in, Operating Pressure - Maximum 232 psi, Media Temperature - Maximum 176 Degrees F, Mounting Orientation Vertical, Enclosure Rating IP67, Float Diameter 1/4 in, Number of Outputs - Digital 2, Float Length Not Applicable, Output Wire Configuration 4-Wire, Probe Type Rod, Overall Length 2.5 in
