Shop MADISON

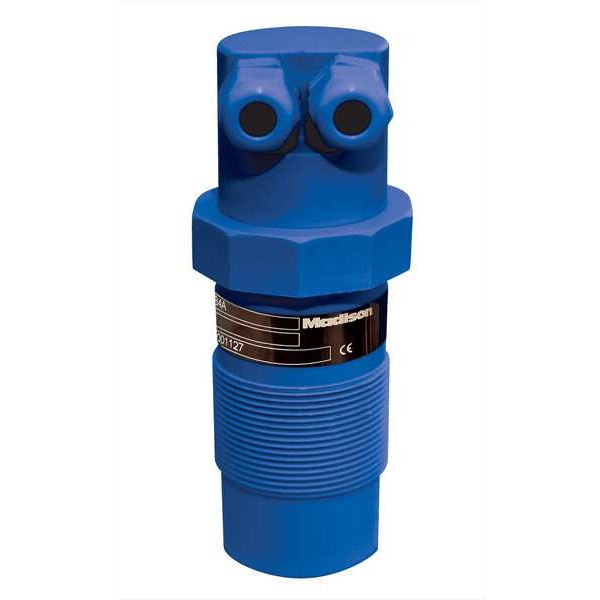

Ultrasonic Sensor, 0.04", Push Button, Poly

  • Mfr # U5098-D024-019

  • Zoro # G700892780

product price:  $907.99
/ea
Free Shipping & Returns

Key Features

Classification
Ultrasonic
Range
19 ft
Mounting
2 G Thread
Accuracy
+/-0.2% Max of Full Range
Resolution
0.04 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
U5098-D024-019
Zoro #
G700892780
UPC #
-
Country of Origin
Italy

Dimensions

Height
8.425 in
Overall Height
8.4 in
Antenna Diameter
2 1/8 in
Connection Size
2 in

Details

Item
Ultrasonic Sensor
Classification
Ultrasonic
Range
19 ft
Mounting
2 G Thread
Accuracy
+/-0.2% Max of Full Range
Resolution
0.04 in
Max. Pressure
7.25 psi
Temp. Range
-22 Degrees to 158 Degrees F
Input Voltage
20 to 30 V DC
Enclosure Material
Polypropylene
Configuration
Push Button
Gasket Material
Buna-N
Beam Angle
10 Degrees
Dead Band
10 in
Operating Frequency
55 kHz
Material
Polypropylene
Display
None
Standards
CE Certified
Enclosure Rating
IP66
Output
4 to 20mA
For Media Type
Film-Causing, Solid/Semi-Solid Liquid, Sticky Liquid
Spatial Resolution
0.04 in
Operating Pressure - Maximum
72.5 psi
Voltage - Maximum
30V DC
Output Voltage Range
4 to 20mA
Display Type
None
Media Temperature - Minimum
-22 Degrees F
Connection Type
NPT
Media Temperature - Maximum
158 Degrees F
Output Wire Configuration
4-Wire

Description

Ultrasonic Sensor, For Media Type Film-Causing, Solid/Semi-Solid Liquid, Sticky Liquid, Antenna Diameter 2 1/8 in, Range 19 ft, Connection Size 2 in, Connection Type NPT, Accuracy +/-0.2 Percent Max of Full Range, Voltage - Maximum 30V DC, Dead Band 10 in, Beam Angle 10 Degrees , Operating Frequency 55 kHz, Spatial Resolution 0.04 in, Operating Pressure - Maximum 72.5 psi, Media Temperature - Minimum -22 Degrees F, Media Temperature - Maximum 158 Degrees F, Output Wire Configuration 4-Wire
