  11. Point Level Sensor, 213 mm L

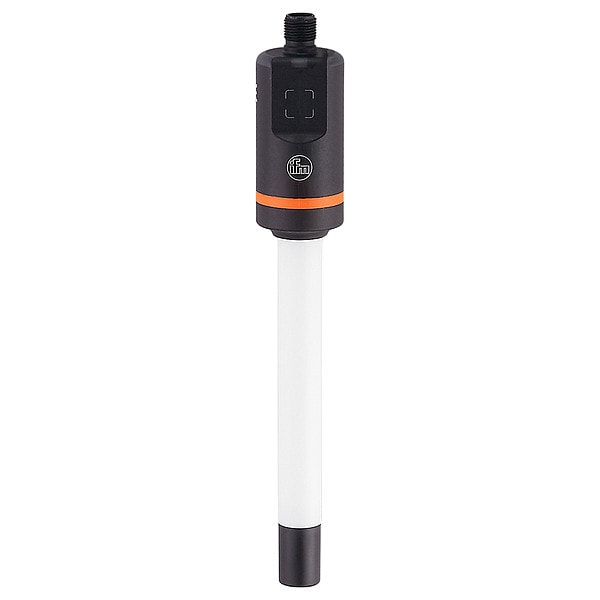

Ifm Point Level Sensor, 213 mm L LI5131 - main

Point Level Sensor, 213 mm L

  • Mfr # LI5131

  • Zoro # G907969001

product price: $216.99
/ea
Free Shipping & Returns

Key Features

Range
5.2 in
Accuracy
+/-2 mm
Overall Length
8.4 in
Body Material
Polypropylene
Standards
CA, CE, cULus, DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, DIN EN 61000-6-4, IEC 61131-9
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LI5131
Zoro #
G907969001
UPC #
-
Country of Origin
Romania

Dimensions

Overall Length
8.4 in
Stem Length
5 1/4 in
Connection Size
1/2 in
Probe length L [mm]
132
Probe diameter [mm]
16
Float Diameter
5/8 in

Details

Item
Point Level Sensor
Range
5.2 in
Accuracy
+/-2 mm
Body Material
Polypropylene
Standards
CA, CE, cULus, DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, DIN EN 61000-6-4, IEC 61131-9
Display
operation LED, green switching status LED, yellow
Connection Type
Tube
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
Enclosure Rating
IP68, IP69K
Stem Material
Polypropylene
Media Temperature (Maximum)
85 Degrees C
Operating Pressure (Maximum)
0.5 bar
Product Type
Point Level Sensor
Probe Material
Polypropylene
Reverse polarity protection
yes
Output signal
switching signal; IO-Link
EMC
DIN EN 61000-6-2 DIN EN 61000-6-3 in a closed metal tank DIN EN 61000-6-4 in plastic or open metal tanks
Short-circuit protection
yes
Protection
IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68)
Protection class
III
Vibration resistance
DIN EN 60068-2-6 5 g (10...2000 Hz)
Storage temperature [°C]
-25...85
UL approval
UL Approval no. H013 File number UL E174191
Min. process cycle time [ms]
4.5
Max. voltage drop switching output DC [V]
2.5
IO-Link revision
1.1
Transmission type
COM2 (38,4 kBaud)
Materials
PP reinforced fibre
Process data binary
2
Dynamic response T09 [s]
240
Materials (wetted parts)
PP
Dielectric constant of the medium
> 1,8
SDCI standard
IEC 61131-9
Pressure rating [bar]
0.5
Accuracy [K]
1,5
Resolution [K]
0.1
Factory setting
hydrous media
Type of short-circuit protection
pulsed
Active range A [mm]
28
Profiles
Smart Sensor ED2: Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)
Measuring range [°C]
-25...85
Recommended media
water; hydrous media; oils; oil-based media
Total number of outputs
2
Medium temperature [°C]
-25...85
Ambient temperature [°C]
-25...85
Operating elements
inductive programming button
Process data analogue
5
Shock resistance
DIN EN 60068-2-27 12 g (11 ms)
Number of digital outputs
2
Measuring principle
capacitive
Power-on delay time [s]
< 1
Operating voltage [V]
9.6...35 DC; (IO-Link: 18...30 DC)
Electrical design
PNP/NPN
Vacuum resistance [mbar]
-500
Overload protection
yes
Output function
normally open / normally closed; (parameterisable)
Permanent current rating of switching output DC [mA]
100
Number of inputs and outputs
Number of digital outputs: 2
MTTF [years]
433
Response time [s]
< 0.3
Unterstützte Masterportklasse
A
Media
Liquids
Communication interface
IO-Link
Current consumption [mA]
< 15
SIO mode
yes
Special feature
Gold-plated contacts
Mounting Orientation
Vertical
Nameplate Voltage
19.6/35V DC
Media Temperature - Maximum
85 Degrees F
Output Wire Configuration
4-Wire
Operating Pressure - Maximum
7.3 psi
For Media Type
Nonhazardous Liquids
Number of Outputs - Digital
2
Measuring range [°C]
-25...85
Unterstützte Masterportklasse
A
Storage temperature [°C]
-25...85
Ambient temperature [°C]
-25...85
Measuring principle
capacitive
Medium temperature [°C]
-25...85

Description

Point Level Sensor, Product Type Point Level Sensor, Connection Size 1/2 in, For Media Type Nonhazardous Liquids, Connection Type Tube, Body Material Polypropylene, Accuracy +/-2 mm, Range 5.2 in, Stem Length 5 1/4 in, Operating Pressure - Maximum 7.3 psi, Media Temperature - Maximum 85 Degrees F, Mounting Orientation Vertical, Enclosure Rating IP68, IP69K, Float Diameter 5/8 in, Number of Outputs - Digital 2, Float Length Not Applicable, Output Wire Configuration 4-Wire, Probe Type Rod
