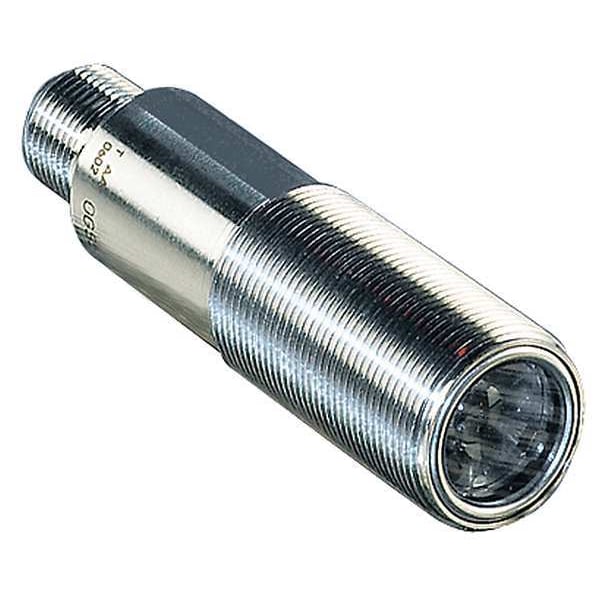

Polarized Retroreflective Photoelectric Sensor, M12, Right Angle, Cylindrical, Selectable Light On/Dark On, PNP

  • Mfr # OGP500

  • Zoro # G7073981

product price:  $98.45
/ea

Key Features

Sensing Method
Polarized Retroreflective
Electrical Connection
M12
Style
Cylindrical
Orientation
Right Angle
Overall Diameter
18 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
OGP500
Zoro #
G7073981
UPC #
-
Country of Origin
Germany

Dimensions

Overall Diameter
18 mm
Length
72.00mm
Diameter
18mm
Diameter - Cylindrical Photoelectric Sensor
18 mm
Min. Object Size
200mm dia Light Spot
Length - Cylindrical Photoelectric Sensor
72 mm
Overall Height
72 mm
Wave length [nm]
624
Light spot dimensions refer to
at maximum range
Max. light spot diameter [mm]
200
Dimensions [mm]
M18 x 1 / L = 72
Sensor Diameter
18 mm
Minimum Object Size
200mm Dia. Light Spot

Details

Item
Photoelectric Sensor
Sensing Method
Polarized Retroreflective
Electrical Connection
M12
Style
Cylindrical
Orientation
Right Angle
Operating Mode
Selectable Light On/Dark On
IP Rating
IP67
Output Circuit Type
PNP
DC Voltage Rating
10-36V DC
Standards
CE, cULus, UKCA
Power Requirement - Cylindrical Photoelectric Sensor
10 to 36V DC
Operating Frequency
2,000 Hz
Features
Overload Protection, PMMA Lens, Reverse Polarity Protection
Power Requirement
10 to 36VDC
Max. Load Current
200 mA
Operating Temp. Range
-25 Degrees to 80 Degrees C
Max. Sensing Distance - Cylindrical Photoelectric Sensor
5 m
Light Source
Red LED
Body Material
Stainless Steel
Display
switching status 1 x LED, yellow
Lens material
PMMA
Switching frequency DC [Hz]
2000
Items supplied
lock nuts: 2 x
Reverse polarity protection
yes
Electrical design
PNP
Polarisation filter available
yes
Current consumption [mA]
20
EMC
EN 60947-5-2
Protection
IP 67
Range referred to prismatic reflector [m]
0.03...5; (Prismatic reflector Ø 80 E20005)
Overload protection
yes
Max. voltage drop switching output DC [V]
2.5
Materials
stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU
MTTF [years]
431
Protection class
II
Thread designation
M18 x 1
Operating voltage [V]
10...36 DC
Permanent current rating of switching output DC [mA]
150; (200 (...60°C))
Range adjustable
yes
Type of short-circuit protection
pulsed
Short-circuit protection
yes
Function principle
Retro-reflective sensor
Ambient temperature [°C]
-25...80
Factory setting
dark-on mode
Special feature
polarisation filter
Type of light
red light
Sensing Distance - Minimum
0 m
Number of Pins
4
Load Current - Maximum
200 mA
Operating Temperature - Minimum
-13 Degrees F
Switching Frequency
2 kHz
Operating Temperature - Maximum
176 Degrees F
NEMA Enclosure Rating
No Enclosure
Emitted Sensor Light
Red Light
Sensing Distance - Maximum
5 m
Electrical Installation Type
Direct Connector
Includes Indicator Lights
Indicator Lights Included

Description

Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Retroreflective, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 10 to 36V DC, Electrical Connection - Cylindrical Photoelectric Sensor 4-Pin M12 Male Connector, Circuit Type - Cylindrical Photoelectric Sensor PNP, Max. Sensing Distance - Cylindrical Photoelectric Sensor 5 m
