Shop SQUARE D

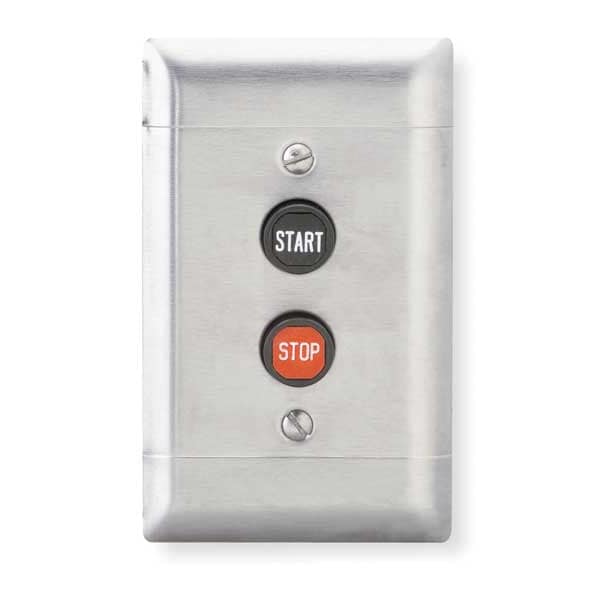

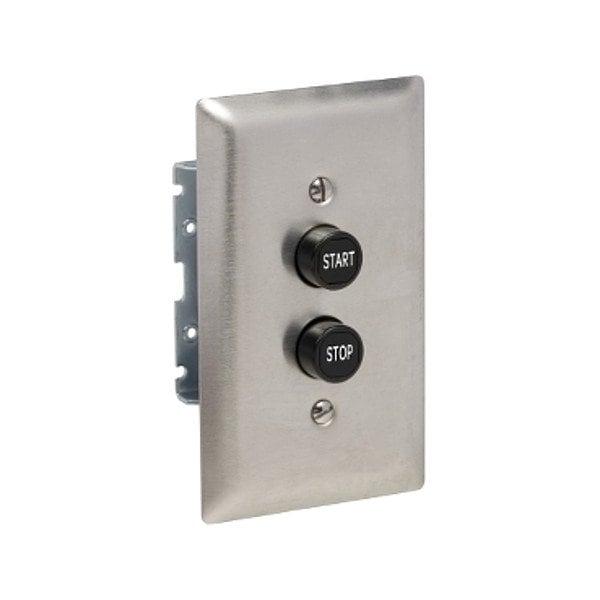

Push Bttn Cntrl Statn, 1NO/1NC, Start/Stop

  • Mfr # 9001BF201

  • Zoro # G2633522

product price:  $111.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
1
Legend
Start/Stop
Number of Pilot Lights
0
Type of Operator
Flush Button/Flush Button
Contact Form
1NO/1NC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001BF201
Zoro #
G2633522
UPC #
785901390459
Country of Origin
Korea, Republic of

Dimensions

Size
30 mm
Overall Width
2.75 in
Manufacturer Warranty Length
18 mo
Overall Height
4.5 in
Overall Depth
2.13 in

Details

Item
Control Station
Number of Gangs
1
Legend
Start/Stop
Number of Pilot Lights
0
Type of Operator
Flush Button/Flush Button
Contact Form
1NO/1NC
Number of Operators
2
NEMA Rating
1
Hub Style
Feed-Thru
Series
9001
Contact Rating
5A @ 600V AC/24V DC
Standards
CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
For Use With
indoor
Action
Momentary/Momentary
Mechanical Interlock
No
Green Environmental Attribute
RoHS 2011/65/EU Compliant
IP Rating
IP20
Enclosure Material
Stainless Steel
Operator Color
(2) Black
Mounting
flush
Number of Speeds
1
Enclosure Color
Gray
Mounting Style
Surface
Terminal Connection
screw clamp terminal
Operating Temperature - Maximum
158 Degrees F
Includes Mechanical Interlock
No Mechanical Interlock Included.
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Product Type
Control Station
NEMA Enclosure Rating
1
AC Contact Rating
0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3.75 A @ 120 V
Hazardous Location Specification
Not Rated
Operating Temperature - Minimum
-13 Degrees F
Operator Configuration
(2) Push Buttons

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 30 mm, Legend Start/Stop, Type of Operator Flush Button/Flush Button, Action Momentary/Momentary, Operator Color (2) Black, Contact Form 1NO/1NC, Mechanical Interlock No, NEMA Rating 1, Contact Rating 5A @ 600V AC/24V DC, IP Rating IP20, Enclosure Material Stainless Steel, Enclosure Color Gray, Standards CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
