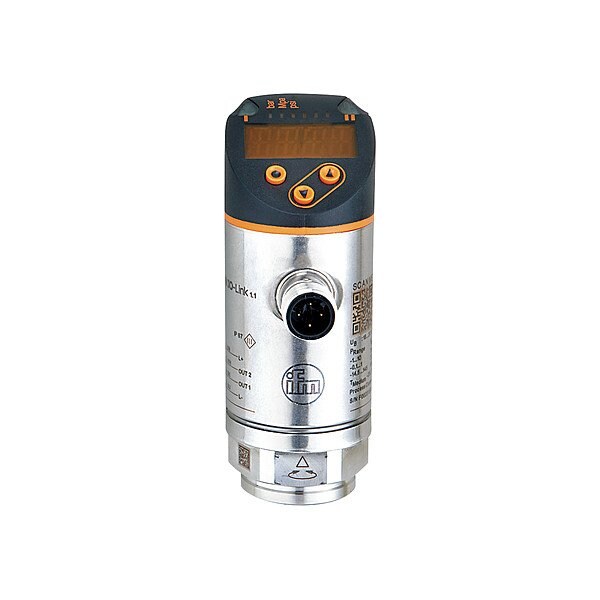

Pressure switch and transmitter
Mfr # PN2094
Zoro # G123654422
product price:Â $608.99
/ea
Free Shipping & Returns
Key Features
Analog Signal Output
0-10V, 4-20 mA
Overall Height
90.7 mm
Pressure - Minimum
-13.6 psi
Compatible Media
Gas, Liquid
Series
PN20
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
PN2094
Zoro #
G123654422
UPC #
-
Country of Origin
Germany
Dimensions
Overall Height
90.7 mm
Overall Depth
49.4 mm
Manufacturer Warranty Length
5 yr
Overall Width
34 mm
Details
Item
Pressure Switch and Transmitter
Analog Signal Output
0-10V, 4-20 mA
Pressure - Minimum
-13.6 psi
Compatible Media
Gas, Liquid
Series
PN20
Proof Pressure
1,087 psi
Operating Temperature - Minimum
-25 Degrees C
Standards
CE, CRN, cULus Listed, DNV.COM/AF, IEC 61131-9, IO-Link, UKCA
IP Rating
IP65, IP67
Pressure - Maximum
145 psi
Housing Material
PBT-GF20, PBT+PC-GF30, PC, Stainless Steel
Operating Temperature - Maximum
80 Degrees C
Switching Signal Output
PNP/NPN
Voltage Rating - Maximum
30 V DC
Pressure Connection Type
G1/4
Electrical Connection
4-Pin M12 Male Connector
Wetted Materials
Ceramic, FKM, Stainless Steel
Description
Pressure Switch and Transmitter, Electrical Connection 4-Pin M12 Male Connector, Wetted Materials Ceramic, FKM, Stainless Steel, Housing Material PBT-GF20, PBT+PC-GF30, PC, Stainless Steel, IP Rating IP65, IP67, Standards CE, CRN, cULus Listed, DNV.COM/AF, IEC 61131-9, IO-Link, UKCA
