  13. Pressure Switch, Standard, 2SPST, 1/4" NPT, 0 to 145 psi Range, 316 Stainless Steel

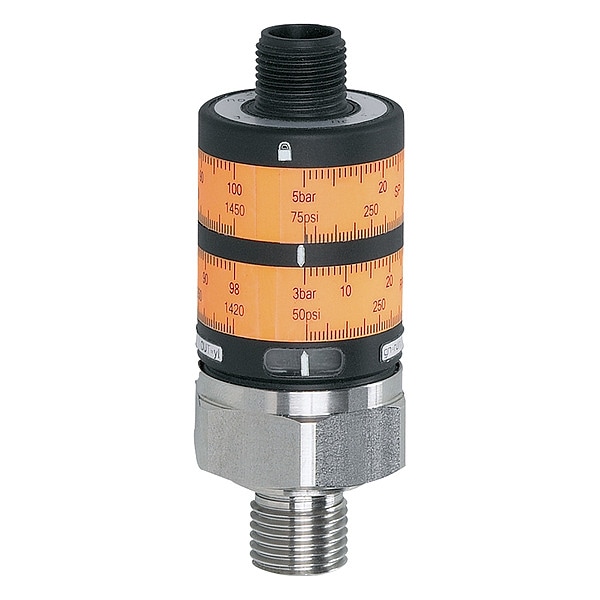

Ifm Pressure Switch, Standard, 2SPST, 1/4" NPT, 0 to 145 psi Range, 316 Stainless Steel PK6224 - main

CAD Drawings

Download CAD Files

Pressure Switch, Standard, 2SPST, 1/4" NPT, 0 to 145 psi Range, 316 Stainless Steel

  • Mfr # PK6224

  • Zoro # G8521143

CAD Available
product price: $200.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Action
Standard
Contact Form
2SPST
Pressure Connection Type
1/4" NPT
Range
0 to 145 psi
Housing Material
316 Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PK6224
Zoro #
G8521143
UPC #
-
Country of Origin
Romania

Details

Item
Pressure Switch
Action
Standard
Contact Form
2SPST
Pressure Connection Type
1/4" NPT
Range
0 to 145 psi
Housing Material
316 Stainless Steel
Standards
CE, CRN Listed, DIN EN 60068-2-27, DIN EN 60068-2-6, UL
Circuit Type
Electronic PNP
DC Contact Rating
500 mA @ 10 to 32V DC
Electrical Connection
M12 Connector
On Set Point
7.5 to 145 psi
Wetted Materials
316L Stainless Steel
Process Connection
1/4 in MNPT
Burst Pressure
4,350 psi
Compatible With
Air and Liquids
Off Set Point
5 to 142 psi
IP Rating
IP67
Operating Temp. Range
13 Degrees to 176 Degrees F
Series
PK
Pressure Switch Range
0 to 145 psi
Pressure Switch Electrical Contact Form
(2) SPST
Overload Protection
yes
Application
for industrial applications
Display
operation LED, green switching status LED, yellow
Material
316 Stainless Steel
Media
liquids and gases
Min. insulation resistance [MΩ]
100; (500 V DC)
Switch point accuracy [% of the final value]
<± 2,5; (Setting accuracy)
Short-circuit protection
yes
Repeatability [% of the final value]
<± 0,5; (with temperature fluctuations < 10 K)
Adjustment of the switch point
setting rings
Current consumption [mA]
< 25
Protection class
III
Electrical design
PNP
Shock resistance
DIN EN 60068-2-27 50 g (11 ms)
Number of digital outputs
2
Type of short-circuit protection
pulsed
Output function
complementary
Reverse polarity protection
yes
Total number of outputs
2
Min. pressure cycles
50 million
Number of inputs and outputs
Number of digital outputs: 2
Temperature drift per 10 K
<± 0.5
Pressure rating
25 bar 362 psi
MAWP (for applications according to CRN)
25 bar 362 psi
Measuring range
0...10 bar 0...145 psi
Type of pressure
relative pressure
Operating voltage [V]
9.6...32 DC
Permanent current rating of switching output DC [mA]
500
Min. bursting pressure
300 bar 4350 psi
With scale
yes
EMC
DIN EN 61000-6-2 DIN EN 61000-6-3
Max. voltage drop switching output DC [V]
2
Reset point rP
0.3...9.8 bar 5...142 psi
MTTF [years]
500
Characteristics deviation [% of the final value]
<± 1,5 (BFSL) / <± 2,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
Restrictor element integrated
no (can be retrofitted)
Switching frequency DC [Hz]
100
Vibration resistance
DIN EN 60068-2-6 20 g (10...2000 Hz)
Set point SP
0.5...10 bar 7.5...145 psi
Protection
IP 67
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Adjustable Range Type
Field Adjustable
Pressure - Minimum
0 psi
Actuator Style
Transducer
Compatible Media
Gas, Liquid
Set Point - Maximum
145 psi
Resistance Properties
Insulation Resistant, Shock Resistant, Vibration Resistant
Reset Point - Minimum
5 psi
Set Point - Minimum
7.5 psi
Pressure - Maximum
145 psi
Reset Point - Maximum
142 psi
CAD Available
Yes

Description

Pressure Switch, Range 0 to 145 psi, Process Connection 1/4 in MNPT, Housing Material Stainless Steel, Wetted Materials 316L Stainless Steel, Compatible With Air and Liquids, Electrical Connection M12 Connector, Contact Form 2NO/2NC, Circuit Type Electronic PNP, AC Contact Rating Not Applicable, DC Contact Rating 0.5 A @ 9.6 to 32 V, NEMA Rating Not Rated, IP Rating IP67, Burst Pressure 4,350 psi, Operating Temp. Range 13 Degrees to 176 Degrees F, Off Set Point 5 to 142 psi
