Shop IFM

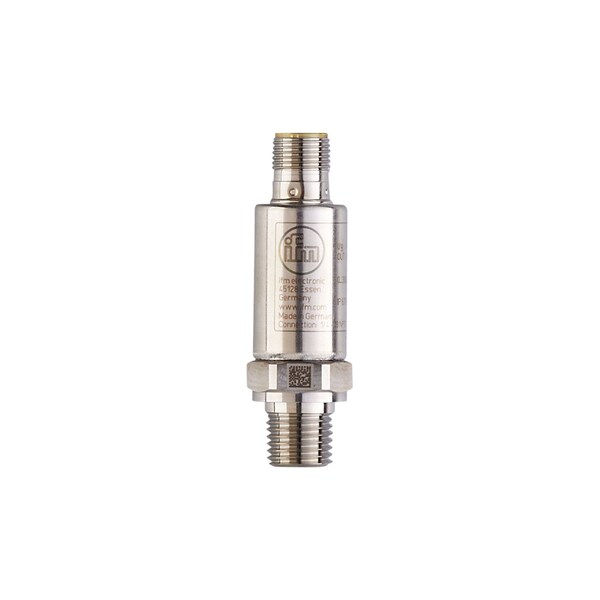

Pressure Transmitter, 66.9mm L, 8.5-36V DC

  • Mfr # PT2424

  • Zoro # G722808783

product price:  $194.99
/ea
Free Shipping & Returns

Key Features

Process Media Temperature - Maximum
90 Degrees C
Electrical Connection
4-Pin M12 Connector
Pressure Measurement - Maximum
580 psi
Wire Rope Length
66.9 mm
Features
Steel Housing, Repeatability, Shock and Vibration Resistance, 60 Million Pressure Cycles Lifespan
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PT2424
Zoro #
G722808783
UPC #
-
Country of Origin
Romania

Dimensions

Wire Rope Length
66.9 mm
Process Connection Size
1/4 in
Manufacturers Warranty Length
5 yr

Details

Process Media Temperature - Maximum
90 Degrees C
Electrical Connection
4-Pin M12 Connector
Pressure Measurement - Maximum
580 psi
Features
Steel Housing, Repeatability, Shock and Vibration Resistance, 60 Million Pressure Cycles Lifespan
Response Time
1 msec
Input Voltage
8.5 to 36V DC
IP Rating
IP67, IP69K
Pressure Type Measured
Relative
Item
Pressure Transmitter
Number of Wires
2
Process Connection Type
NPT
Output Power
4 to 20mA
Accuracy
+/-0.50%
Thermal Error
Less Than+/-0.05%
Resistance Properties
Shock Resistant, Vibration Resistant
Standards
CE, cULus Listed, UKCA
Burst Pressure
6,525 psi
Housing Material
Stainless Steel
Process Media Temperature - Minimum
-40 Degrees C
Overpressure
580 psi
Process Connection Gender
Male

Description

Pressure Transmitter, Accuracy +/-0.50 Percent, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, IP Rating IP67, IP69K, Housing Material Stainless Steel, Burst Pressure 6,525 psi
