Add Tax ExemptionSpecifications
Product Information
MFR #
II7105
Zoro #
G6820046
UPC #
-
Country of Origin
Germany
Dimensions
Length
61mm
Proximity Sensor Diameter
30.0mm
Length (Straight Wireway)
61mm
Details
Item
Cylindrical Proximity Sensor
Proximity Sensor Style
Cylindrical Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
15 to 30V DC
Proximity Sensor Output Circuit Type
3 Wire PNP
Output Mode
NO
Max. Detecting Distance
15.0mm
Proximity Sensor Electrical Connection
2m Cable
Shielded / Unshielded
Unshielded
Basic Proximity Sensor Case Material
Metal
Proximity Sensor Operating Frequency
200 Hz
Case Material
Nickel Plated Brass
Standards
UL Listed, CE Compliance
Max. Current Load
100mA
Description/Special Features
Yellow LED Output Indication, Overload And Short-Circuit Protection
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
67
Includes
(2) Lock Nuts
Description

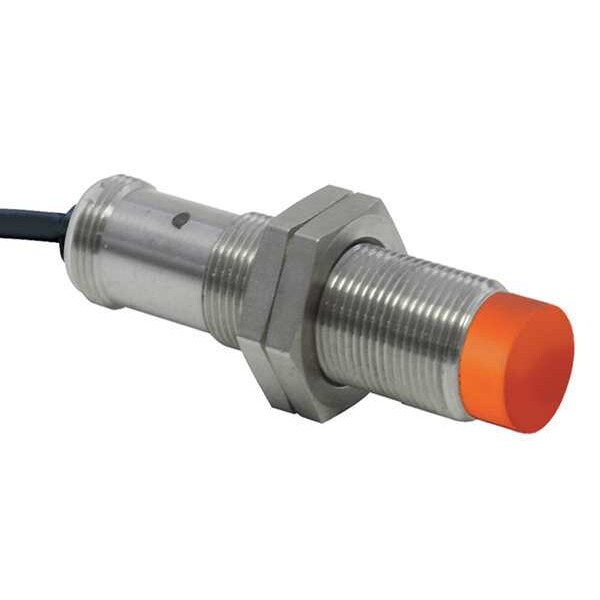

Cylindrical Proximity Sensor, Inductive, 30.0mm, Proximity Sensor Power Requirement 15 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 200 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 15.0mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating 67, Case Material Nickel Plated Brass, Length 61mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
