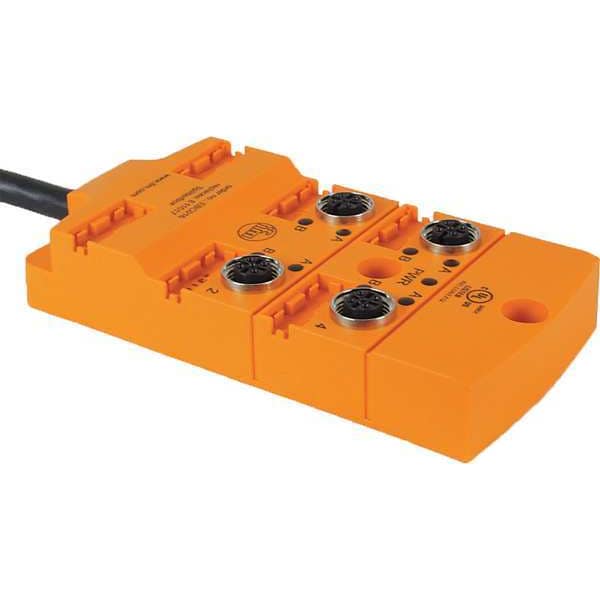

Ifm Sensor Wiring Block, 4 Pin, Receptacle EBC016 - main

Sensor Wiring Block, 4 Pin, Receptacle

  • Mfr # EBC016

  • Zoro # G7207182

product price: $166.99
/ea
Free Shipping & Returns

Key Features

End 1 Number of Pins
4
Cable Length
5 m
Wire Size
22 AWG
IP Rating
IP67, IP68
Temp. Range
-25 Degrees to 80 Degrees C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EBC016
Zoro #
G7207182
UPC #
-
Country of Origin
Germany

Dimensions

Cable Length
5 m
Wire Size
22 AWG
Thread Size
M12
Overall Length
54 mm
Overall Width
22 mm
Overall Height
82 mm

Details

Item
Sensor Wiring Block
End 1 Number of Pins
4
IP Rating
IP67, IP68
Temp. Range
-25 Degrees to 80 Degrees C
End 1 Keyway
Single
End 1 Gender and Plug End
Female Straight
Standards
UL and cULus Listed
Number of Conductors
3
End 1 Connection Type
Receptacle
Max. Amps
12 A
End 2 Connection Type
Bare Wire
Features
Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
Max. Voltage
10 to 30VDC
End 1 Thread
M12
Color
Black
For Use With
Harsh Industrial Environment
Cable Jacket Material
PUR
Minimum Operating Temperature
-25 Degrees C
Number of Cores
11
Number of Ports
4
Includes
(2) Protective Caps, (4) Labels
Resistance Properties
Coolant Resistant, Oil Resistant
Number of Poles
5
Maximum Operating Temperature
80 Degrees C
Gender
Female
Cable Jacket Color
Black
Connection Type
Receptacle
Current Rating per Port
4 A
Voltage Rating
10-30 V DC

Description

Sensor Wiring Block, Cable Jacket Color Black, Cable Jacket Material PUR, Cable Length 5 m, Connection Type Receptacle, Current Rating 12 A, Current Rating per Port 4 A, Features (1) Green LED for Power, (8) Yellow LEDs for Switching Status, Gold-Plated Contacts, Molded PA Body, PNP Electrical Design, Gender Female, IP Rating IP 67, IP 68, Includes (2) Protective Caps, (4) Labels, Maximum Operating Temperature 80 Degrees C, Minimum Operating Temperature -25 Degrees C, Number of Conductors 3
