  11. Single-Ended Cordset, 10 m L Cable

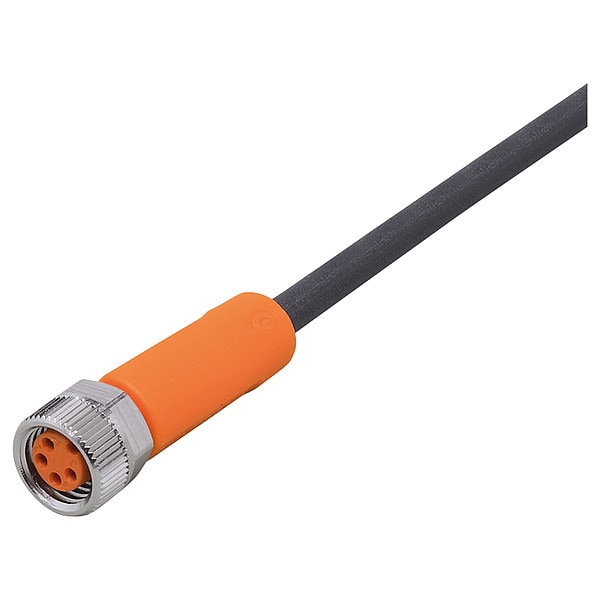

Ifm Single-Ended Cordset, 10 m L Cable EVC152 - main

Single-Ended Cordset, 10 m L Cable

  • Mfr # EVC152

  • Zoro # G307877586

product price: $38.59
/ea

Key Features

End 1 Number of Pins
4
Cable Length
10 m
Wire Size
0.25 mm²
IP Rating
IP65, IP67, IP68, IP69K
Features
High Protection Rating for the Requirements of Harsh Industrial Environments, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Resistant to Oils and Coolants, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EVC152
Zoro #
G307877586
UPC #
-
Country of Origin
Poland

Dimensions

Cable Length
10 m
Wire Size
0.25 mm²
Dimensions [mm]
10 x 10 x 31

Details

Item
Cordset
End 1 Number of Pins
4
IP Rating
IP65, IP67, IP68, IP69K
Features
High Protection Rating for the Requirements of Harsh Industrial Environments, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Resistant to Oils and Coolants, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism
Standards
CE, cULus, UKCA
End 2 Connection Type
Bare Wire
End 1 Connection Type
M8
Max. Voltage
50 V AC, 60 V DC
Max. Amps
3 A
End 1 Gender
Female
Cable Jacket Color
Black
Number of Wires
4
End 1 Mounting Orientation
Straight
Cable Jacket Material
PUR
Minimum Operating Temperature
-13 Degrees F
End 1 Number of Keyways
1
Maximum Operating Temperature
194 Degrees F
Storage temperature [°C]
-25...55
Ambient temperature (moving) [°C]
-25...90
Materials
housing: TPU orange; Sealing: FKM
Connection
Connector: 1 x M8, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm
Special feature
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
Storage humidity [%]
10...100
Electrical connection
Cable: 10 m, PUR, Halogen-free, black, Ø 3.7 mm; 4 x 0.25 mm² (32 x Ø 0.1 mm )
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Protection class
III
Material nut
brass, nickel-plated
Ambient temperature [°C]
-25...90
Operating voltage [V]
< 50 AC / < 60 DC
Max. current load total [A]
3
Product Type
Single Ended

Description

Single-Ended Cordset, End 1 Gender Female, End 1 Number of Pins 4, End 1 Mounting Orientation Straight, End 1 Connection Type M8, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 10 m, Cable Jacket Color Black, Cable Jacket Material PUR, Max. Amps 3 A, Wire Size 0.25 sq mm, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K, Standards CE, cULus, UKCA, Cable Type Round
