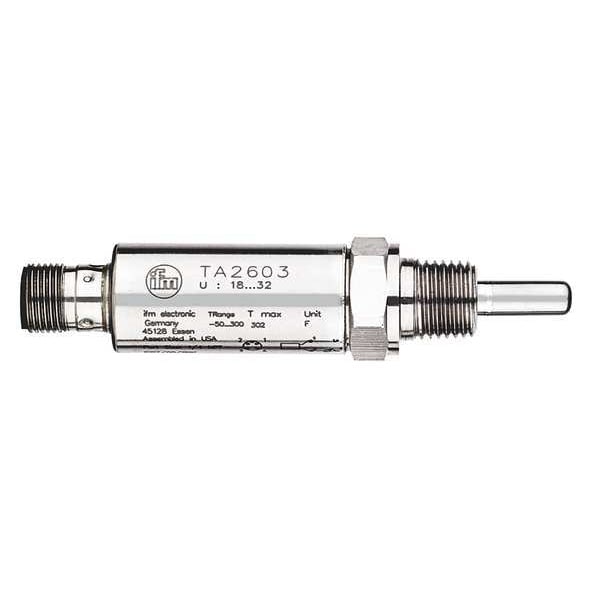

Temp Transducer, 63/64 in., 1/4 in. NPT
Mfr # TA2603
Zoro # G0528486
product price: $243.99
/ea
Free Shipping & Returns
Key Features
IP Rating
IP67, IP68, IP69K
Output
4 to 20mA DC
Electrical Connection
4-Pin M12 Connector
Temp. Accuracy
+/- 0.54 Degrees F + (0.1% of measuring scale)
Process Connection
1/4 in NPT
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
TA2603
Zoro #
G0528486
UPC #
-
Country of Origin
United States
Dimensions
Manufacturers Warranty Length
5 yr
Probe Dia.
15/64 in
Probe Length
0.98 in
Overall Length
3.97 in
Process Connection Size
1/2 in
Probe Diameter
0.23 in
Overall Height
100.7 mm
Description
Temperature Transducer, Maximum Sensed Temperature 302 Degrees F, Minimum Sensed Temperature -58 Degrees F, Temperature Accuracy +/-0.3K + 0.1 Percent Mid-Scale, +/-0.54 Degrees F + 0.1 Percent Mid-Scale, Power Required 18 to 32V DC, Electrical Connections 4-Pin M12 Connector, Overall Length 3.97 in, IP Rating IP67, IP68, IP69K, Series TA, Output 4 to 20mA DC, Humidity Accuracy Not Applicable, Probe Length 0.98 in, Sensing Element Type Pt1000 RTD, Display LED, Display Type Analog
