  9. Temperature Transducer, 9-27/32 in., LED

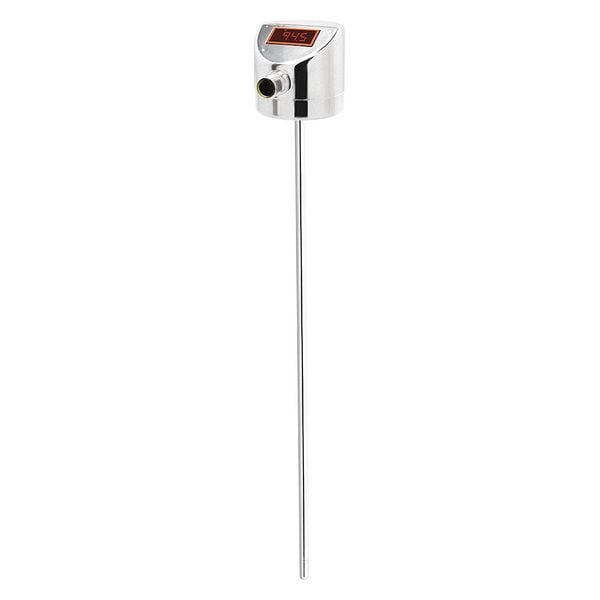

Ifm Temperature Transducer, 9-27/32 in., LED TD2263 - main

Temperature Transducer, 9-27/32 in., LED

  • Mfr # TD2263

  • Zoro # G0528416

product price: $285.99
/ea
Free Shipping & Returns

Key Features

IP Rating
IP67, IP68, IP69K
Output
4 to 20mA DC
Electrical Connection
4-Pin M12 Connector
Temp. Accuracy
+/- 0.54 Degrees F + (0.1% of measuring scale)
Process Connection
6 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TD2263
Zoro #
G0528416
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
5 yr
Probe Dia.
15/64 in
Probe Length
9.84 in
Probe Diameter
0.23 in
Overall Length
2.48 in
Overall Height
11.73 in
Conduit Connection Size
6 mm
Overall Width
1.97 in
Process Connection Size
6 mm

Details

Item
Sanitary Temperature Transmitter
IP Rating
IP67, IP68, IP69K
Output
4 to 20mA DC
Electrical Connection
4-Pin M12 Connector
Temp. Accuracy
+/- 0.54 Degrees F + (0.1% of measuring scale)
Process Connection
6 mm
Power Source
18 to 32V DC
Temp. Range
0 to 300 Degrees F
Standards
CE, cUL Listed, EAC, EC 1935/2004, EHEDG Certified, FCM, FDA Approved, IO-Link
Power Required
18 to 32V DC
Display
4 Digit LED
Response Time
0.33 sec
Electrical Connections
4-Pin M12 Connector
Enclosure Rating
IP67, IP68, IP69K
Features
Short Power-on Delay Time, High Protection and Pressure Rating, Precise Analog Output and User-Friendly Communication Via Io-Link
For Use With
24V DC Power Supplies, Cables for Increased Current Rating, Female Cordsets, Female Wire Connectors, IO-Link Accessories, IO-Link-Displays, IO-Link-Field Mountable Masters for High Pressure Cleaning, LR Device, Moneo Configure, Mounting Adapters for Industrial Applications, Patchcords, Signaling and Display Systems, Thermowells for Temperature Sensor, Welding Adapter, Y-Splitters
RoHS Compliant
Yes
Temperature Accuracy
+/-0.54 Degrees F, 0.1%
Minimum Sensed Temperature
0 Degrees F
Maximum Ambient Temperature
80 Degrees C
Sensing Element Type
Pt1000 RTD
Series
TD
Maximum Sensed Temperature
300 Degrees F
Minimum Ambient Temperature
-25 Degrees C
Storage Temperature Range
-40 Degrees C to 100 Degrees C
Process Connection Type
clamp fitting 6mm diameter
Temperature Sensor
Pt1000 RTD
Output Power
4 to 20mA DC
Display Screen Type
LED
Input Voltage
18 to 32V DC
Process Media Temperature Measurement - Maximum
300 Degrees F
Operating Temperature - Maximum
80 Degrees C
Process Media Temperature Measurement - Minimum
0 Degrees F
Operating Temperature - Minimum
-25 Degrees C

Description

Sanitary Temperature Transmitter, Maximum Sensed Temperature 300 Degrees F, Minimum Sensed Temperature 0 Degrees F, Temperature Accuracy +/-0.54 Degrees F, 0.1 Percent, Power Required 18 to 32V DC, Electrical Connections 4-Pin M12 Connector, Overall Length 2.48 in, IP Rating IP67, IP68, IP69K, Series TD, Output 4 to 20mA DC, Display 4 Digit LED, Probe Length 9.84 in, Sensing Element Type Pt1000 RTD, Conduit Connection Size 6 mm, Enclosure Rating IP67, IP68, IP69K
