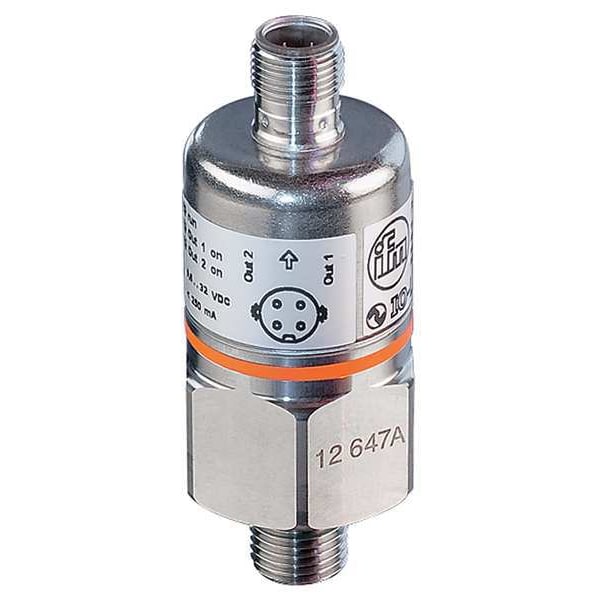

Ifm Transmitter, 0-3000psi, 9.6-32VDC PX3111 - main

Transmitter, 0-3000psi, 9.6-32VDC

  • Mfr # PX3111

  • Zoro # G6037333

product price: $313.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.75% of Full Scale
Output
4 to 20mA DC
Power Required
9.6 to 32V DC
Process Connection Type
NPT
Process Connection Size
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PX3111
Zoro #
G6037333
UPC #
-
Country of Origin
Romania

Dimensions

Process Connection Size
1/4 in
Process Connection Size - Transmitter
1/4 in
Overall Width
30 in
Overall Height
79.5 in

Details

Item
Pressure Transmitter
Accuracy
+/-0.75% of Full Scale
Output
4 to 20mA DC
Power Required
9.6 to 32V DC
Process Connection Type
NPT
Operating Temp. - Transmitter
-25 Degrees to 90 Degrees C
Series
PX
Standards
CE, cULus Listed, EAC
Range
0 to 3000 psi
Accuracy - Transmitter
+/-0.75% Full Scale
Range Units - Transmitter
psi
Wiring Entry - Transmitter
1/2 in FNPT
Housing
Stainless Steel
Process Connection Type - Transmitter
MNPT
Transmitter Type
Pressure Transmitter
Output - Transmitter
4 to 20mA DC
Range Values - Transmitter
0 to 3000
Electrical Connections - Transmitter
4 Pin M12 Connector
Operating Temp.
-25 Degrees to 90 Degrees C
Loop Resistance
720 ohms @ 24V DC
Power Required - Transmitters
9.6 to 32V DC
Process Connection
1/4 in Male NPT
Thermal Error
0.3%
Features
Long Term Stability, Precise Analog Output
IP Rating
IP68, IP69K
Maximum Operating Temperature
90 Degrees C
Minimum Pressure
0 psi
Safety Rating
Class III
Maximum Pressure
3,000 psi
Pressure Units
psi
Wiring Entry
1/2 in FNPT Conduit Connection
Overpressure
5,800 psi
Process Connection Gender
Male
Intrinsically Safe
No
Housing Material
Stainless Steel
Type of Pressure
Relative
Maximum Loop Resistance
720 Ohm Max
Weight
213 g
Minimum Operating Temperature
-25 Degrees C
Number of Wires
2
Response Time
3 msec
Explosion/Fire Proof
No
Electrical Connections
4-Pin M12 Connector
Fitting Material
Stainless Steel
Burst Pressure
12,300 psi
Electrical Connection
4-Pin M12 Connector
Intrinsic Safety
Not Specified Intrinsically Safe
Input Voltage
9.6 to 32V DC
Process Media Temperature - Minimum
-25 Degrees C
Pressure Type Measured
Relative
Loop Resistance - Maximum
720 Ohm Max
Output Power
4 to 20mA DC
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Process Media Temperature - Maximum
90 Degrees C
Pressure Measurement - Minimum
0 psi
Pressure Measurement - Maximum
3,000 psi

Description

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 3,000 psi, Electrical Connections 4-Pin M12 Connector, Output 4 to 20mA DC, Accuracy +/-0.75 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 9.6 to 32V DC, IP Rating IP68, IP69K, Series PX, Wiring Entry 1/2 in FNPT Conduit Connection, Maximum Operating Temperature 90 Degrees C, Minimum Operating Temperature -25 Degrees C
