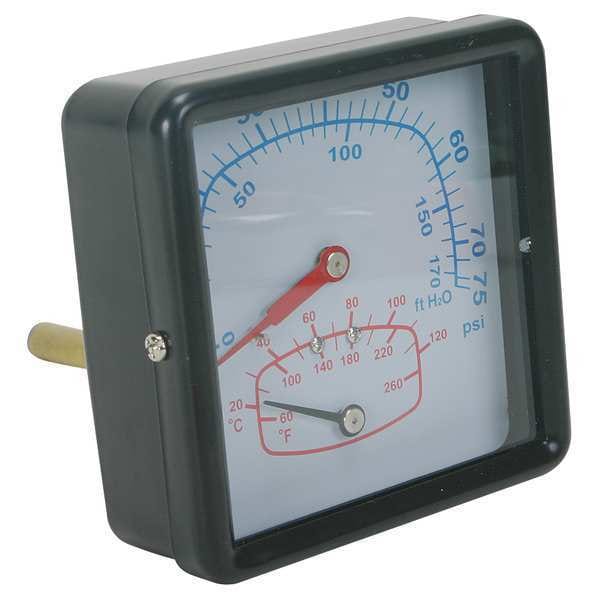

Boiler Gauge, Square, 0-75 PSI, 60 to 260 F

product price: $29.25
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Boiler Gauge Type Square Boiler Gauge
  • Boiler Gauge Case Height 3 11/16 in
  • Pressure Range 0 to 75 psi
  • Boiler Gauge Case Width 3 11/16 in
  • Gauge Connection Location Lower Back
See all product information

Product Information

Dimensions

Boiler Gauge Case Height 3 11/16 in
Boiler Gauge Case Width 3 11/16 in
Manufacturers Warranty Length 1 yr
Gauge Connection Size 1/2 in
Boiler Gauge Stem Extension Length 1.4 in
Stem Length (In.) 2.06
Boiler Gauge Stem Length 2.06 in
Nominal Dial Size 3 11/16 in
Case Width 3.687 in
Manufacturer Warranty Length 1 yr
Process Connection Size 1/2 in
Case Height 3.687 in
Stem Insertion Length 2.06 in

Details

Boiler Gauge Type Square Boiler Gauge
Item Square Boiler Gauge
Pressure Range 0 to 75 psi
Gauge Connection Location Lower Back
Gauge Connection Type MNPT
Gauge Primary Range Values 0 to 75
Gauge Primary Range Units psi
Gauge Accuracy +/-3-2-3%
Case Color Black
Tube Material Bronze
Basic Gauge Case Material Steel
Temp. Accuracy +/-3%
Socket Material Brass
Boiler Gauge Temp. Range (F) 60 Degrees to 260 Degrees
Basic Gauge Lens Material Glass
Window Glass
Temp. Range (C) 20 Degrees to 120 Degrees
Case Material Steel
Boiler Gauge Temp. Range - F 60 Degrees to 260 Degrees
Basic Gauge Wetted Parts Brass / Bronze
Stem Extension (In.) 1.4
Temperature Range °C 20 Degrees to 120 Degrees C
Primary Scale Units psi
Temperature Scale Units Degrees C, Degrees F
Dial Face Material Glass
Primary Pressure Range 0 to 75
Temperature Accuracy +/-3.00%
Dial Color White
Process Connection Location Lower Back
Accuracy Scale Mid-Scale
Scale Type Single
Pressure Gauge Type Tridicator Boiler Gauge
Pressure Accuracy +/-3-2-3%
Case Shape Square
Temperature Range °F 60 Degrees to 260 Degrees F
Pressure Range Type Pressure
Lens Material Plastic
Neck Extension 1.4 in
Process Connection Type NPT
Application Boilers
Process Temperature Range 60 Degrees to 260 Degrees F
Gauge Case Material Steel
Hazardous Location Rating Not Rated
Compatible Process Media Water
Process Connection Gender Male
Sensor Material Bronze
Temperature Range °F 60 Degrees to 260 Degrees F
Temperature Range °C 20 Degrees to 120 Degrees C

Description

Square Boiler Gauge, Boiler Gauge Case Height 3 11/16 in, Boiler Gauge Case Width 3 11/16 in, Gauge Connection Location Lower Back, Gauge Connection Type MNPT, Gauge Connection Size 1/2 in, 0 to 75, psi, Gauge Accuracy +/-3-2-3 Percent, Basic Gauge Case Material Steel, Basic Gauge Wetted Parts Brass / Bronze, Basic Gauge Lens Material Glass, 60 Degrees to 260 Degrees Boiler Gauge Temp. Range - F, Temp. Range (C) 20 Degrees to 120 Degrees , Temp. Accuracy +/-3 Percent, Case Material Steel
