- Item

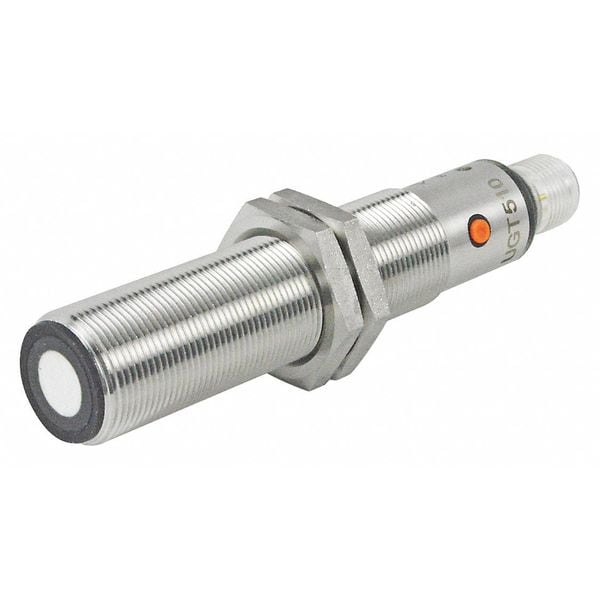

- Ultrasonic Sensor
- Switching frequency DC [Hz]
- 3
- Temperature compensation
- yes
- Max. deviation from the 90° angle sensor/object [°]
- ± 4
- Max. voltage drop switching output DC [V]
- 2.2
- Power-on delay time [s]
- < 0.3
- SDCI standard
- IEC 61131-9
- Communication interface
- IO-Link
- Transmission type
- COM2 (38,4 kBaud)
- UL approval
- Ta -20...70°C power supply Class 2 File number UL E174191
- Number of inputs and outputs
- Number of digital outputs: 1; Number of analogue outputs: 1
- Blind zone [mm]
- 150
- Display
- switching status 2 x LED, yellow echo 1 x LED, green
- MTTF [years]
- 125
- Number of digital outputs
- 1
- Profiles
- Smart Sensor: Device Identification; Multi-channel, two setpoint switching sensor, type 0 Generic Profiled Sensor; Process Data Variable; Device Diagnosis; Teach Channel
- Tightening torque [Nm]
- 50
- Angle of aperture cylindrical [°]
- 15; (±2)
- Overload protection
- yes
- Analogue current output [mA]
- 4...20
- Ambient temperature [°C]
- -20...70
- IO-Link functions (acyclical)
- application specific tag; operating hours counter
- Output function
- normally open / normally closed; (parameterisable + 1x current output)
- Required master port type
- A
- Converter frequency [kHz]
- 230
- Thread designation
- M18 x 1
- IO-Link process data (cyclical)
- function bit length process value 16 device status 4 binary switching information 2
- EMC
- EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 Class A
- Number of analogue outputs
- 1
- Response time [ms]
- < 300; (analogue output)
- Materials
- stainless steel (1.4404 / 316L); PA; epoxy glass ceramics
- Parameter setting options
- hysteresis / window; second switch point; Switch-on and switch-off delay; switch-on operations; Teach function; light-on/dark-on mode
- Linearity error of analogue output [%]
- <2
- Vibration resistance
- EN 60068-2-6 Fc (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
- Repeatability
- 0.01
- Hysteresis [%]
- < 2
- Teach function
- yes
- Connection
- Connector: 1 x M12; coding: A
- SIO mode
- yes
- Current consumption [mA]
- 55
- IO-Link revision
- 1.1
- Total number of outputs
- 2
- Reverse polarity protection
- yes
- Protection class
- III
- Items supplied
- lock nuts: 2, stainless steel
- Resolution of analogue output
- < 3 mm
- Permanent current rating of switching output DC [mA]
- 100
- Electrical design
- PNP
- Switch point drift [%]
- -2...2
- Storage temperature [°C]
- -30...80
- Max. load [Ω]
- 500
- Housing
- threaded type
- Shock resistance
- EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
- Sensing range [mm]
- 150...1600; (Target: 200 x 200 mm)
- Min. process cycle time [ms]
- 3.2
- Short-circuit protection
- yes
- Operating voltage [V]
- 10...30 DC; ("supply class 2" to cULus)
- Protection
- IP 67
