Shop SCHNEIDER ELECTRIC

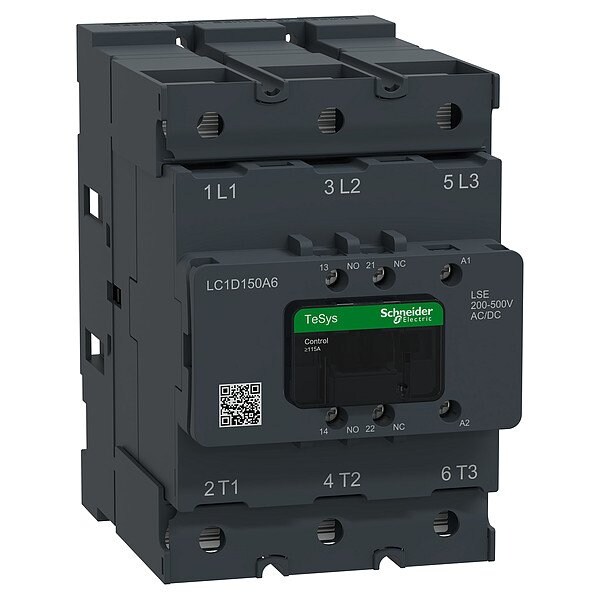

CTR Deca 150A 3P 200-500V ACDC Lug

  • Mfr # LC1D150A6LSE

  • Zoro # G822842328

product price:
$
1,050.99
/ea
Free Shipping & Returns

Key Features

Overall Width
3.9 in
Includes Auxiliary Contacts
Yes
Minimum Operating Temperature
-40 Degrees F
Embedded Surge Suppressor
Yes
Electrical Operating Durability
500,000, 850,000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D150A6LSE
Zoro #
G822842328
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Width
3.9 in
Overall Height
5.98 in
Overall Depth
6.1 in

Details

Includes Auxiliary Contacts
Yes
Minimum Operating Temperature
-40 Degrees F
Embedded Surge Suppressor
Yes
Electrical Operating Durability
500,000, 850,000
Phase
Three
Coil Voltage
200-500V AC/DC
Mounting Style
Plate
Terminal Connection Type
Box Lugs
Number of Poles
3
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Full Load Current - Resistive
Not Rated
Maximum Voltage Rating
440V
Full Load Current - Inductive
150 A
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Number of Normally Open Main Contacts
3
Maximum Operating Temperature
140 Degrees F
Reversing Capability
Non-Reversing
Mechanical Operating Durability
8,000,000
Series
Tesys Deca
Contactor Style
IEC
Frequency
50/60 Hz
NEMA Enclosure Rating
No Enclosure
Item
IEC Contactor
Number of Auxillary Contacts
2
Auxiliary Contact Form
1NO/1NC

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 200-500V AC/DC, Number of Poles 3, Full Load Current - Inductive 150 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 3.9 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Three

Restrictions
