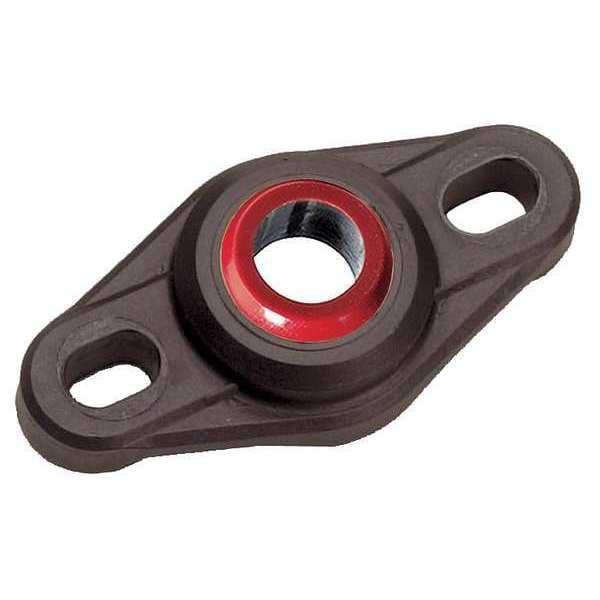

2 Bolt Flng Brg, Spherical, 3/8in Bore

  • Mfr # EFOI-06 R

  • Zoro # G1706591


product price:  $11.89
/ea

Key Features

System of Measurement
Inch
Bearing Insert Type
Spherical Plain
Housing Type
Rhombus
Shaft Locking Type
None
Number of Mount Holes
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EFOI-06 R
Zoro #
G1706591
UPC #
-
Country of Origin
United States

Dimensions

Bore Diameter
3/8 in
Mount Hole Center-to-Center Length
1-13/32 in
Overall Length
2-3/64 in
Overall Width
15/32 in
Overall Height
1-1/64 in
Flange Thickness
1/4 in
Dimension D
1 417/1000 in
Dimension E
0.210 in x 0.315 in
Dimension A
2 47/1000 in
Dimension C
1 3/125 in
Mount Hole Size
0.21 in
Mounting Bolt Size
1/4 in

Details

System of Measurement
Inch
Bearing Insert Type
Spherical Plain
Item
2 Bolt Flange Bearing
Housing Type
Rhombus
Shaft Locking Type
None
Number of Mount Holes
2
Bearing Insert Material
Polymer
Housing Material
Polymer
Temp. Range
-40 Degrees to 194 Degrees F
Standards
DIN ISO Certified 12240
Minimum Temperature
-22 Degrees F
Self Lubricating Bearing
Yes
Features
Absolutely Corrosion-Resistant, Compensation of Misalignment Errors, Easy Installation, Maintenance-Free Dry Operation, Time Saving Through Fast Assembly, Very Lightweight
Resistance Properties
Corrosion Resistant
Maximum Temperature
176 Degrees F
Bearing Material Grade
iglide(R) R
Housing Material Finish
Unfinished
Load Direction
Radial, Thrust
Lubrication Openings
None
Closure
Open
Application
Agricultural Machines, Automation, Food Industry, Mechanical Engineering, Plant Construction
Maximum Ball Swivel
24 Degrees
Bore Type
Cylindrical
Housing Material Grade
igumid G
Static Radial Load Capacity
450 lbf
Maximum PV
8,700 lb/sq in-fpm
Expansion Type
Fixed
For Environment
Clean Room, Food and Beverage

Description

2 Bolt Flange Bearing, Bearing Insert Material Polymer, Bearing Insert Type Spherical Plain, Bore Diameter 3/8 in, Bore Type Cylindrical, Closure Open, Expansion Type Fixed, For Environment Clean Room, Food and Beverage, Housing Material Polymer, Housing Type Rhombus, Lubricant Material Not Applicable, Maximum Temperature 176 Degrees F, Minimum Temperature -22 Degrees F, Number of Mount Holes 2, Overall Height 1 1/64 in, Overall Length 2 3/64 in, Overall Width 15/32 in
