Shop All Flange Bearings
Ina

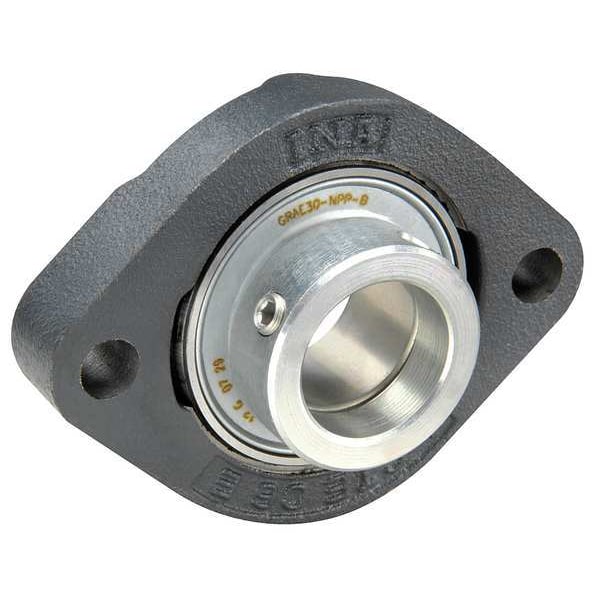

Flange Bearing, 2-Bolt, Ball, 25mm Bore

product price: $128.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bearing Insert Type Radial Ball
  • Bore Dia. 25 mm
  • Shaft Locking Type Eccentric Collar
  • Bearing Housing Material Type Cast Iron
  • Bearing Insert Material Alloy Steel
See all product information

Product Information

Dimensions

Bore Dia. 25 mm
Bolt Size M8
Overall Height 71 mm
Dimension N 9 mm
Dimension L 71 mm
Dimension J 76 1/5 mm
Dimension H 97 mm
Dimension D 25 mm
Overall Length 97 mm
Overall Width 33.4 mm
Bore Diameter 25 mm
Mount Hole Center-to-Center Length 76.2 mm
Mount Hole Size 9 mm
Mounting Bolt Size M8

Details

Bearing Insert Type Radial Ball
Shaft Locking Type Eccentric Collar
Bearing Housing Material Type Cast Iron
Bearing Insert Material Alloy Steel
Bolt Hole Center-to-Center 76.2 mm
Series GLCTE
Locking Type Eccentric Locking Collar
Housing Material Cast Iron
Bearing Lubrication FAG Arcanol-MULTI2 or NLGI #2 Equivalent
Temp. Range -20 Degrees to 120 Degrees F
Standards GTB14 DIN1680-2
Item 2 Bolt Flange Bearing
Static Load Capacity 7,800 N
Finish Painted
Dynamic Load Capacity 14,000 N
Includes TEXT
Housing Type Rhombus
Rolling Element Rows 1
Bearing Material Grade 100Cr6
Self Lubricating Bearing No
Seal Material Nitrile Rubber
Bore Type Cylindrical
Split Housing Not Split
Load Direction Radial
Included Bearing Radial Insert Ball
Flange Thickness 19.5 mm
Number of Mount Holes 2
Static Radial Load Capacity 7,800 N
Lubricant Material Lithium Complex Grease
Minimum Temperature -30 Degrees C
System of Measurement Metric
Closure Double Sealed
Housing Material Finish Painted
Lubrication Openings Threaded Lubrication Hole
Maximum Temperature 50 Degrees C

Description

2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 25 mm, Bore Type Cylindrical, Closure Double Sealed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 71 mm, Overall Length 97 mm, Overall Width 33.4 mm, Rolling Element Rows 1
