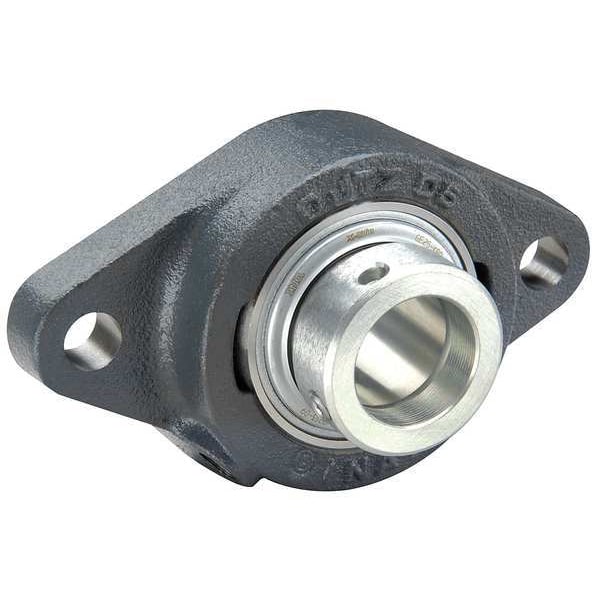

Flange Bearing, 2-Bolt, Ball, 25mm Bore
Mfr # RCJTZ25-XL
Zoro # G6805592
product price:Â $244.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Housing Type
Rhombus
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Collar
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
RCJTZ25-XL
Zoro #
G6805592
UPC #
-
Country of Origin
Viet Nam
Dimensions
Bolt Size
M10
Bore Diameter
25 mm
Mount Hole Center-to-Center Length
99 mm
Overall Length
70 mm
Overall Width
46 mm
Overall Height
124 mm
Flange Thickness
12 mm
Dimension L
70 mm
Dimension N
11.5 mm
Dimension D
25 mm
Dimension J
99 mm
Dimension H
124 mm
Dimension A
26.5 mm
Mount Hole Size
11.5 mm
Mounting Bolt Size
M10
Description
2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 25 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 124 mm, Overall Length 70 mm, Overall Width 46 mm, Rolling Element Rows 1
