  11. Flange Bearing, 2-Bolt, Ball, 30mm Bore
Shop All Flange Bearings
Ina

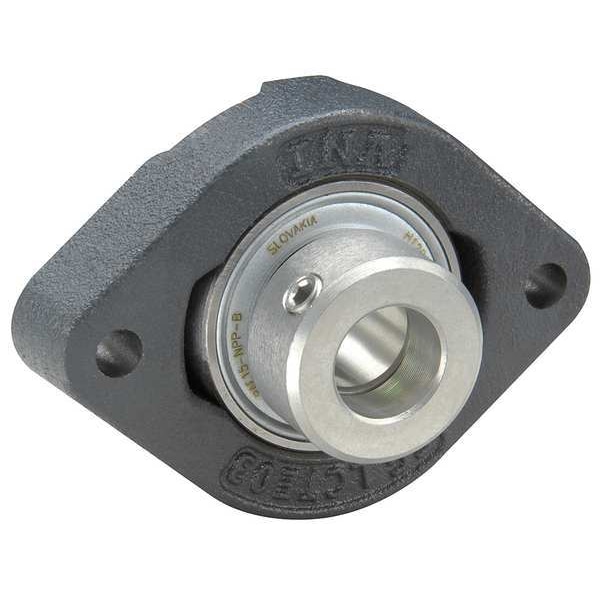

Flange Bearing, 2-Bolt, Ball, 30mm Bore

product price: $119.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Bearing Insert Type Radial Ball
  • Bore Dia. 30 mm
  • Shaft Locking Type Eccentric Collar
  • Bearing Housing Material Type Cast Iron
  • Bearing Insert Material Alloy Steel
See all product information

Product Information

Dimensions

Bore Dia. 30 mm
Bolt Size M10
Overall Height 112.5 mm
Dimension H 112.5 mm
Dimension J 90 1/2 mm
Dimension D 30 mm
Overall Length 84 mm
Overall Width 38.1 mm
Dimension N 11.5 mm
Dimension L 84 mm
Mount Hole Center-to-Center Length 90.5 mm
Mounting Bolt Size M10
Mount Hole Size 11.5 mm
Bore Diameter 30 mm

Details

Bearing Insert Type Radial Ball
Shaft Locking Type Eccentric Collar
Bearing Housing Material Type Cast Iron
Bearing Insert Material Alloy Steel
Bolt Hole Center-to-Center 90.5 mm
Series FLCTE
Static Load Capacity 11,300 N
Bearing Lubrication FAG Arcanol-MULTI2 or NLGI #2 Equivalent
Temp. Range -20 Degrees to 120 Degrees F
Locking Type Eccentric Locking Collar
Dynamic Load Capacity 20,700 N
Finish Painted
Includes TEXT
Housing Material Cast Iron
Standards GTB14 DIN1680-2
Item 2 Bolt Flange Bearing
Included Bearing Radial Insert Ball
Bore Type Cylindrical
Closure Double Sealed
Housing Type Rhombus
Number of Mount Holes 2
Load Direction Radial
Self Lubricating Bearing No
Seal Material Nitrile Rubber
Static Radial Load Capacity 11,300 N
Rolling Element Rows 1
Lubricant Material Lithium Complex Grease
Flange Thickness 22.5 mm
Maximum Temperature 50 Degrees C
Lubrication Openings None
Bearing Material Grade 100Cr6
Minimum Temperature -30 Degrees C
Housing Material Finish Painted
System of Measurement Metric
Split Housing Not Split

Description

2 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 30 mm, Bore Type Cylindrical, Closure Double Sealed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Number of Mount Holes 2, Overall Height 112.5 mm, Overall Length 84 mm, Overall Width 38.1 mm, Rolling Element Rows 1
