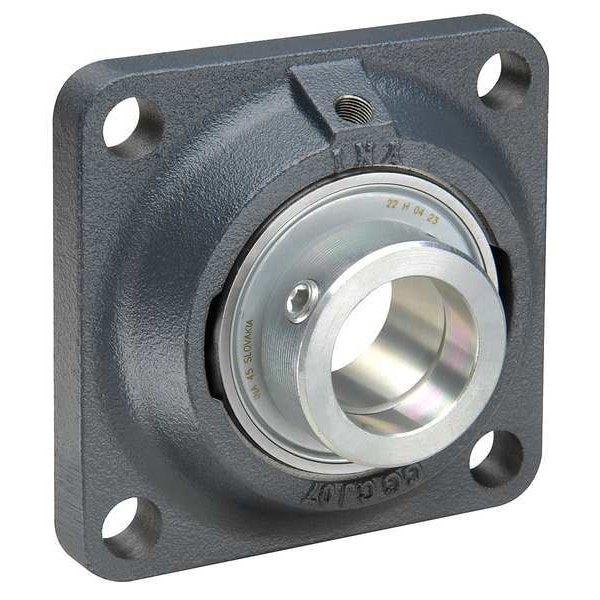

Flange Bearing, 4-Bolt, Ball, 75mm Bore
Mfr # RCJ75-XL
Zoro # G6439526
product price:Â $883.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Radial Ball
Shaft Locking Type
Eccentric Locking Collar
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
RCJ75-XL
Zoro #
G6439526
UPC #
-
Country of Origin
Viet Nam
Dimensions
Bolt Size
M20
Bore Diameter
75 mm
Mount Hole Center-to-Center Length
153 mm
Overall Length
197 mm
Overall Width
86.9 mm
Overall Height
197 mm
Flange Thickness
20 mm
Dimension A
55.8 mm
Dimension J
153 mm
Dimension D
75 mm
Dimension L
197 mm
Dimension N
23 mm
Mounting Bolt Size
M20
Mount Hole Size
23 mm
Mount Hole Center-to-Center Height
153 mm
Description
4 Bolt Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 75 mm, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Included Bearing Radial Insert Ball, Lubricant Material Lithium Complex Grease, Maximum Temperature 50 Degrees C, Minimum Temperature -30 Degrees C, Mount Hole Center-to-Center Height 153 mm, Number of Mount Holes 4, Overall Height 197 mm, Overall Length 197 mm
