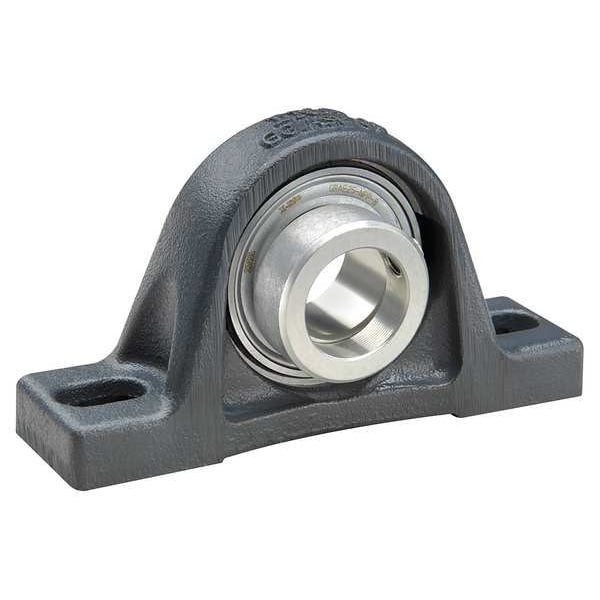

Pillow Block Bearing, Ball, 100mm Bore
Mfr # RASE100-XL
Zoro # G6589737
product price: $2,363.99
/ea
Free Shipping & Returns
Key Features
Bearing Insert Type
Radial Insert Ball
Bore Dia.
100 mm
Shaft Locking Type
Eccentric Collar
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
Alloy Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RASE100-XL
Zoro #
G6589737
UPC #
-
Country of Origin
Slovakia
Dimensions
Bore Dia.
100 mm
Overall Length
380 mm
Overall Height
225 mm
Dimension J
308 mm
Dimension L
380 mm
Dimension H
115 mm
Dimension N
30 mm
Dimension A
95 mm
Dimension H2
225 mm
Dimension S
49.5 mm
Dimension D
100 mm
Dimension H1
40 mm
Overall Width
75 mm
Bolt Size
M27
Bore Diameter
100 mm
Mount Hole Center-to-Center Width
308 mm
Base Width
95 mm
Center Height
115 mm
Base Height
40 mm
Mounting Bolt Size
M27
Description
Pillow Block Bearing, Base Height 40 mm, Base Width 95 mm, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Insert Ball, Bore Diameter 100 mm, Center Height 115 mm, Housing Material Cast Iron, Lubricant Material FAG Arcanol-MULTI2/NLGI #2 Equivalent, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Mount Hole Center-to-Center Width 308 mm, Overall Height 225 mm, Overall Length 380 mm, Overall Width 75 mm, Seal Type Lip Seal, Shaft Locking Type Eccentric Collar
Restrictions
Hazardous material
