Ina

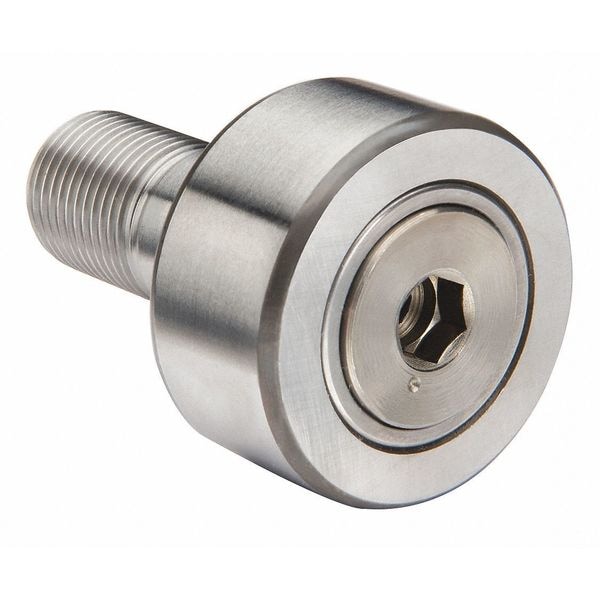

Stud Track Roller, Size 62

product price: $200.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

Slotted Drive
  • Roller Style Heavy Stud
  • Roller Shape Crowned
  • Face Design Screwdriver Slot
  • Roller Dia. 62 mm
  • Roller Width 28 mm
See all product information

Product Information

Dimensions

Roller Dia. 62 mm
Roller Width 28 mm
Stud Dia. 24 mm
Stud Length 49.5 mm
Roller Width (mm) 28
Roller Dia. (mm) 62
Stud Dia. (mm) 24
Thread Size M24X1.5
Size 62
Stud Length (mm) 49.5
Stud Diameter 24 mm
Stud Thread Size M24-1.5
Overall Length 80 mm
Stud Thread Length 25 mm
Roller Diameter 62 mm

Details

Roller Style Heavy Stud
Roller Shape Crowned
Face Design Screwdriver Slot
Stud Type Concentric
Stud Material Steel
Bearing Type Cylindrical Roller
Dynamic Load Capacity (Lb.) 8,992 lb
Roller Material Alloy Steel
Roller Type Crowned
Number of Bearings 1
Static Load Capacity (Lb.) 11,240 lb
Bearing Material Alloy Steel
Max. Load Radial (Lb.) 11,240 lb
Type Stud
Item Track Roller
Static Radial Load Capacity 54,000 N
Roller Head Type Crowned
Roller Material Grade 52100
Duty Type Heavy
Stud Material Grade ANSI 52100
Seal Material Polypropylene
Rolling Element Rows 1
System of Measurement Metric
Seal Type Non-Contact
Drive Type Slotted
Features Full Complement Cylindrical Roller Set, Labyrinth Seals on Both Sides, Stud Type Track Rollers NUKR, with Axial Guidance
Closure Double Sealed
Load Direction Radial
Maximum Speed 2,600 RPM Grease
Drive Location Stud
Dynamic Radial Load Capacity 41,000 N
Bearing Material Grade AISI 52100

Description

Track Roller, Closure Double Sealed, Drive Type Slotted, Duty Type Heavy, Face Design Screwdriver Slot, Overall Length 80 mm, Roller Diameter 62 mm, Roller Head Type Crowned, Roller Material Alloy Steel, Roller Width 28 mm, Rolling Element Rows 1, Seal Type Non-Contact, Stud Material Steel, Stud Thread Size M24-1.5, Stud Type Concentric, System of Measurement Metric, Bearing Material Alloy Steel, Bearing Material Grade AISI 52100, Bearing Type Cylindrical Roller, Drive Location Stud
