  10. /
  11. Yoke Track Roller, Size 62, Bore 30 mm
Shop All Cam Followers & Track Rollers
Ina

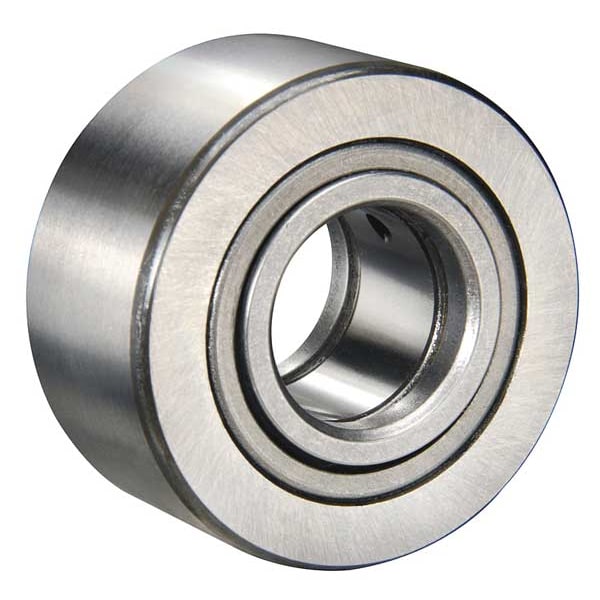

Yoke Track Roller, Size 62, Bore 30 mm

product price: $104.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Roller Style Heavy Yoke
  • Roller Shape Crowned
  • Roller Dia. 62 mm
  • Roller Width 28 mm
  • Bore Dia. 30 mm
See all product information

Product Information

Dimensions

Roller Dia. 62 mm
Roller Width 28 mm
Bore Dia. 30 mm
Size 62
Bore Dia. (mm) 30
Roller Width (mm) 29
Roller Dia. (mm) 62
Bore Diameter 30 mm
Overall Length 29 mm
Roller Diameter 62 mm

Details

Roller Style Heavy Yoke
Roller Shape Crowned
Bearing Material Alloy Steel
Number of Bearings 1
Type Yoke
Roller Material Alloy Steel
Bearing Type Cylindrical Roller
Dynamic Load Capacity (Lb.) 13,300 lb
Static Load Capacity (Lb.) 17,800 lb
Item Yoke Roller
Stud Material 52100 Steel
Max. Load Radial (Lb.) 13,300 lb
Roller Type Crowned
Seal Type Non-Contact
Load Direction Radial
Static Radial Load Capacity 54,000 N
Seal Material NBR
Rolling Element Rows 2
Features Full Complement
Duty Type Heavy
Roller Material Grade SAE 52100
Maximum Speed 2,600 RPM Grease
Lubrication Openings Inner Ring
Dynamic Radial Load Capacity 41,000 N
Bearing Material Grade 52100
System of Measurement Metric
Roller Head Type Crowned
Static Axial Load Capacity 17,800 lbf
Minimum Temperature -30 Degrees F
Closure Double Sealed
Maximum Temperature 250 Degrees F

Description

Yoke Roller, Bore Diameter 30 mm, Closure Double Sealed, Duty Type Heavy, Overall Length 29 mm, Roller Diameter 62 mm, Roller Head Type Crowned, Roller Material Alloy Steel, Roller Width 28 mm, Rolling Element Rows 2, Seal Type Non-Contact, System of Measurement Metric, Bearing Material Alloy Steel, Bearing Material Grade 52100, Bearing Type Cylindrical Roller, Dynamic Radial Load Capacity 41,000 N, Features Full Complement, Flange Diameter Not Applicable, Flange Thickness Not Applicable
