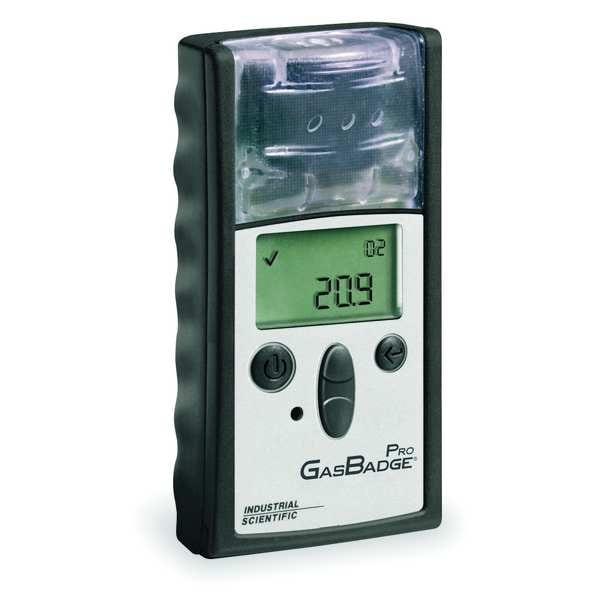

Industrial Scientific Single Gas Detector, Oxygen 18100060-3 - main

Single Gas Detector, Oxygen

  • Mfr # 18100060-3

  • Zoro # G2326581

product price: $742.99
/ea
Free Shipping & Returns

Key Features

Includes
Attached Suspender Clip, Calibration Adapter and Tubing, Operating Instruction
Features
Standard TWA and STEL
Gas Type
O2
Standards
ANZEx: Ex ia I/IIC T4, ATEX Ex ia I/Ex ia IIC T4, China Ex: Ex ia I/IIC T4, Cl II, Gr E-G, CMA: Ex ia I, CSA: Cl I, Gr A-D T4, Equipment Group and Category I M1/II 1G, Ex ia IIC T4, IECEX: Ex ia I/IIC T4, INMETRO: Ex ia IIC T4,UL: Cl I, Div 1, Gr A-D, T4, KC: Ex ia I/IIC T4
Depth
5/64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
18100060-3
Zoro #
G2326581
UPC #
-
Country of Origin
United States

Dimensions

Depth
5/64 in
Width
2 in
Height
3 11/16 in
Overall Height
3.7 in
Battery Size
2CR
Overall Width
2 in
Manufacturer Warranty Length
2 yr
Overall Depth
1.1 in

Details

Item
Single-Gas Detector
Includes
Attached Suspender Clip, Calibration Adapter and Tubing, Operating Instruction
Features
Standard TWA and STEL
Gas Type
O2
Standards
ANZEx: Ex ia I/IIC T4, ATEX Ex ia I/Ex ia IIC T4, China Ex: Ex ia I/IIC T4, Cl II, Gr E-G, CMA: Ex ia I, CSA: Cl I, Gr A-D T4, Equipment Group and Category I M1/II 1G, Ex ia IIC T4, IECEX: Ex ia I/IIC T4, INMETRO: Ex ia IIC T4,UL: Cl I, Div 1, Gr A-D, T4, KC: Ex ia I/IIC T4
Interchangeable Sensors
Yes
Detects
Oxygen
Alarm Setting
Adjustable
Battery Life
2,600 hr
Sensor Range
0 to 30% v/v
Alarm Type
Audible, Vibrating, Visual
Display
Backlit LCD
Resolution
1 ppm
Battery Type
CR2 Lithium
Status Indicator
LED
Temp. Range
-40 to 60 Degrees C
Product Type
Single-Gas Detector
Battery Voltage
3 V
Operating Humidity - Maximum
99 %
Communication Protocol
PC-Compatible Interface
Data Logger
Yes
IP Rating
IP64
Sensor Type
Infrared
Accuracy
+/-0.5^5% (At Temperature of Calibration), +/-0.8^5% (Over Full Measurement Temperature)
Housing Material
Polycarbonate
Number of Gases Detected
1
Operating Temperature - Minimum
-40 Degrees F
Includes Mounting Hardware
Yes
Measurement Range
Oxygen (0 to 30% vol)
Maintainability
Maintainable
Alert Type
Vibration
Number of Batteries Required
1
Operating Temperature - Maximum
140 Degrees F
Temperature Code
T4
Housing Color
Black
Alarm Volume Level
95 dB
Rechargeable Battery
No
Resistance Properties
Water Resistant
Display Screen Type
LCD
Includes Probe
No
Power Source
Battery
Gas Detected
Oxygen
Sensor Life
2 yr (CO, H2S, O2)
Replaceable Battery
Yes
Operating Humidity - Minimum
0 %
Battery Chemistry
Lithium
Chemical Formula
CL2, CLO2, CO, CO/H2, H2, H2S, HCN, NH3, NO2, O2, PH3, SO2
Alarm Setting Adjustment
Adjustable Alarm Setting
Series
GasBadge Pro

Description

Single-Gas Detector, Replaceable Battery Yes, Product Type Single-Gas Detector, Display Screen Type LCD, Includes Probe No, Housing Color Black, Gas Detected Oxygen, Communication Protocol PC-Compatible Interface, Series GasBadge Pro, Battery Size 2CR, Operating Humidity - Maximum 99 Percent, Status Indicator LED, Rechargeable Battery No, Includes Mounting Hardware Yes, Battery Voltage 3 V, Resistance Properties Water Resistant, Operating Humidity - Minimum 0 Percent, Sensor Type Infrared

Restrictions

Hazardous material
