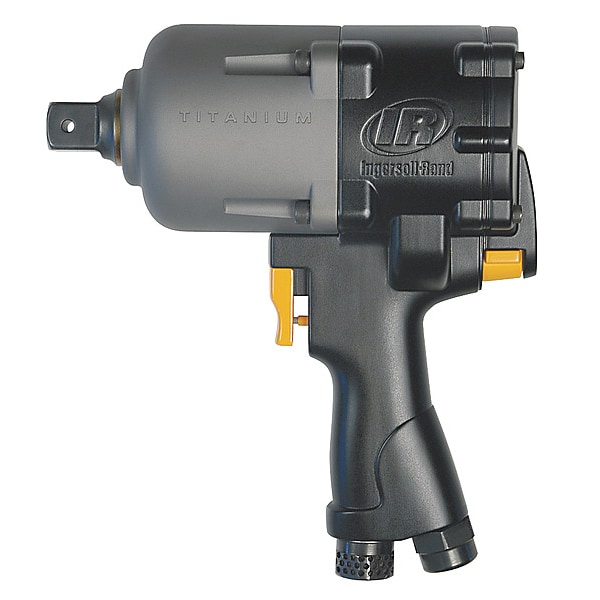

Ingersoll-Rand 1" Air Impact Wrench, 2750 ft-lbs Max Rev Torque, Super Duty 3940P2Ti - main

1" Air Impact Wrench, 2750 ft-lbs Max Rev Torque, Super Duty

  • Mfr # 3940P2Ti

  • Zoro # G0638416

product price: $5,739.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1"
Free Speed
5,300 RPM
Air Inlet
1/2 in NPT
Handle Type
Pistol Grip
Anvil
Standard
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3940P2Ti
Zoro #
G0638416
UPC #
663023076775
Country of Origin
Mexico

Dimensions

Square Drive Size
1"
Air Inlet Size - Air Tools
1/2" NPT
Drive Size - Air Tools
1" Square
Overall Length
10 in
Min. Hose Size
3/4 in
Drive Size
1 in Square

Details

Item
Impact Wrench
Free Speed
5,300 RPM
Air Inlet
1/2 in NPT
Handle Type
Pistol Grip
Anvil
Standard
Blows per Minute - Air Tools
800
Item - Air Impact Wrenches
Air Impact Wrench
Duty
Industrial
Features
Bronze End Plate, Twin Hammer Mechanism
Tool Weight
21.2 lb
Blows per Minute
800
CFM @ Full Load
64.0
Torque Range
500 to 1650 ft.-lb.
Required Pressure
90 psi
Housing Material
Metal
Max. Bolt Capacity
1 in
Average CFM @ 15 Second Run Time
15.00
Retainer Type - Air Impacts
Thru Hole
Body Style - Air Tools
Pistol
Retainer Type
Through Hole
Max. Torque
2500 ft.-lb.
Anvil Type - Air Impacts
Standard
Style
Pistol Grip
Duty Cycle - Air Tools
Industrial Duty
Handle Material
Metal
Standards
EN ISO 11148-6, EN ISO 15744, EN ISO 28927-2
Breakaway Torque
2,500 ft-lb
Drive Type
Standard
Min. Air Pressure
90 psi
Fastening Torque
1,650 ft-lb
Air Consumption
64 cfm
Duty Rating
Industrial Duty
Exhaust Location
Bottom
Power Source
Air Powered
Air Pressure
90 psi
Power to Weight Ratio
117.9 ft-lb/lb
Max. Air Pressure
100 psi
Vibration Level
14.2 m/sq sec
Impacts per Minute
800
Number of Speed Settings
Continuous
Clutch Style
Twin Hammer
Impact Rated
Yes
Built-In Light
No
Impact Sound Level
98 dB
Tool Style
Full-Size

Description

Air Impact Wrench, Power Source Air-Powered, Air Consumption 64 cfm, Air Inlet 1/2 in NPT, Air Pressure 90 psi, Max. Air Pressure 100 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/4 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 2,500 ft-lb, Fastening Torque 2,500 ft-lb, Free Speed 5,300 RPM, Impact Rated Yes, Explosive Environment Rated No, Impact Sound Level 98 dB, Impacts per Minute 800, Number of Speed Settings Continuous, Power to Weight Ratio 117.9 ft-lb/lb
