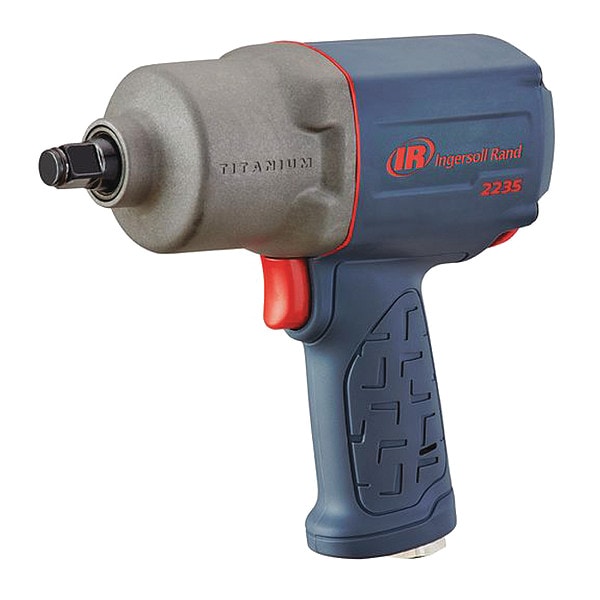

Ingersoll-Rand Air Impact Wrench, Pistol Grip, Full-Size, Gen Duty, 1/2 in Square Drive Size, 1350 ft-lbs Torque 2235TiMAX - main

Air Impact Wrench, Pistol Grip, Full-Size, Gen Duty, 1/2 in Square Drive Size, 1350 ft-lbs Torque

  • Mfr # 2235TiMAX

  • Zoro # G0373996

product price:  $389.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1/2"
Free Speed
8,500 RPM
Air Inlet
1/4 in NPT Female
Handle Type
Pistol Grip
Blows per Minute - Air Tools
1220
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2235TiMAX
Zoro #
G0373996
UPC #
663023119960
Country of Origin
United States

Dimensions

Square Drive Size
1/2"
Drive Size - Air Tools
1/2" Square
Overall Length
7 1/2 in
Air Inlet Size - Air Tools
1/4" NPT
Min. Hose Size
3/8 in
Drive Size
1/2 in Square

Details

Item
Impact Wrench
Free Speed
8,500 RPM
Air Inlet
1/4 in NPT Female
Handle Type
Pistol Grip
Blows per Minute - Air Tools
1220
Anvil
Standard
Retainer Type - Air Impacts
Ring
Retainer Type
Friction Ring
Max. Torque
930 ft.-lb.
Body Style - Air Tools
Pistol
Tool Weight
4.6 lb
Style
Pistol Grip
Torque Range
100 to 900 ft.-lb.
Max. Bolt Capacity
1/2 in
CFM @ Full Load
24.0
Average CFM @ 15 Second Run Time
6.00
Features
Lightweight, Powerful Vane Motor
Blows per Minute
1220
Duty Cycle - Air Tools
General Duty
Duty
General
Handle Material
Composite
Housing Material
Composite
Anvil Type - Air Impacts
Standard
Item - Air Impact Wrenches
Air Impact Wrench
Min. Air Pressure
90 psi
Air Consumption
24 cfm
Standards
EN ISO 11148-6:2012, EN ISO 15744:2008, EN ISO 28927-2:2009
Duty Rating
General Duty
Impact Sound Level
98 dB
Built-In Light
No
Impact Rated
Yes
Vibration Level
9.0 m/sq sec
Impacts per Minute
1,220
Tool Style
Full-Size
Exhaust Location
Bottom
Clutch Style
Twin Hammer
Max. Air Pressure
100 psi
Fastening Torque
900 ft-lb
Air Pressure
90 psi
Drive Type
Standard
Power to Weight Ratio
202.1 ft-lb/lb
Number of Speed Settings
4
Power Source
Air Powered
Breakaway Torque
1,350 ft-lb

Description

Impact Wrench, Power Source Air Powered, Air Consumption 24 cfm, Air Inlet 1/4 in NPT Female, Air Pressure 90 psi, Max. Air Pressure 100 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,350 ft-lb, Fastening Torque 900 ft-lb, Free Speed 8,500 RPM, Impact Rated Yes, Impact Sound Level 98 dB, Impacts per Minute 1,220, Number of Speed Settings 4, Power to Weight Ratio 202.1 ft-lb/lb, Max. Bolt Capacity 1/2 in
