Shop INGERSOLL-RAND

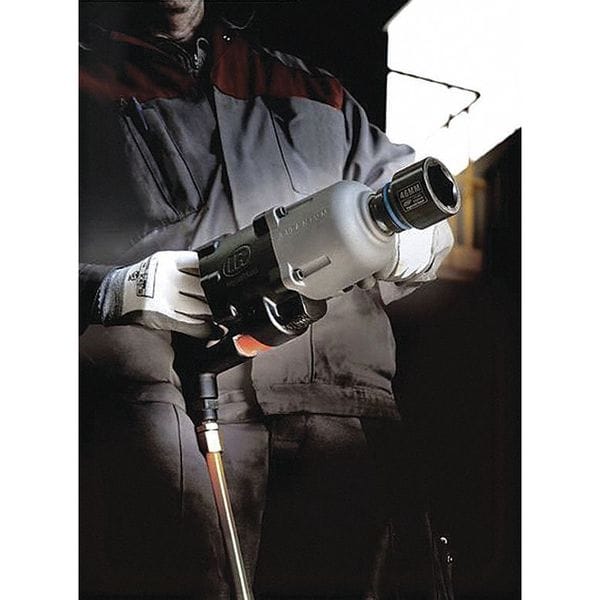

1" Air Impact Wrench, Super Duty, D-handle

  • Mfr # 3942B2Ti

  • Zoro # G4876057

product price:
$
5,520.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1"
Free Speed
5,000 RPM
Air Inlet
1/2 in NPT
Handle Type
D-Handle
Min. Hose Size
3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3942B2Ti
Zoro #
G4876057
UPC #
663023081700
Country of Origin
United States

Dimensions

Square Drive Size
1"
Min. Hose Size
3/4 in
Air Inlet Size - Air Tools
1/2" NPT
Overall Length
14 3/8 in
Drive Size
1 in
Hose Size - Minimum
3/4 in
Air Inlet Connection Size
1/2 in
Wire Rope Length
14 3/8 in
Length
14 3/8 in

Details

Item
Air Impact Wrench
Free Speed
5,000 RPM
Air Inlet
1/2 in NPT
Handle Type
D-Handle
Average CFM @ 15 Second Run Time
20.00
Blows per Minute
850
Duty Cycle - Air Tools
Industrial Duty
Item - Air Impact Wrenches
Air Impact Wrench
CFM @ Full Load
80.0
Max. Bolt Capacity
1 in
Retainer Type - Air Impacts
Thru Hole
Anvil Type - Air Impacts
Standard
Torque Range
1000 to 1950 ft.-lb.
Duty
General
Max. Torque
3250 ft.-lb.
Features
Bronze End Plate, Twin Hammer Mechanism
Handle Material
Metal
Required Pressure
90 psi
Body Style - Air Tools
D-Handle
Tool Weight
22.6 lb
Housing Material
Metal
Retainer Type
Through Hole
Impact Sound Level
99 dB
Tool Style
Full-Size
Clutch Style
Twin Hammer
Impacts per Minute
850
Drive Type
Standard
Exhaust Location
Bottom
Fastening Torque
3,000 ft-lb
Power Source
Air-Powered
Breakaway Torque
3,250 ft-lb
Vibration Level
16.9 m/sq sec
Air Pressure
90 psi
Duty Rating
Industrial Duty
Built-In Light
No
Standards
EN ISO 28927-2, EN ISO11148-6, EN ISO15744
Min. Air Pressure
90 psi
Power to Weight Ratio
143.8 ft-lb/lb
Number of Speed Settings
Continuous
Air Consumption
80 cfm
Max. Air Pressure
100 psi
Impact Rated
Yes
Air Pressure - Maximum
100 psi
Drive Shape
Square
Tool Life
Ultra Durable
Frequency of Use
Frequent Maintenance to Heavy Production
Bolt Capacity - Maximum
1 in
Air Inlet Type
NPT
Air Pressure - Minimum
90 psi
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Impact Wrench, Power Source Air Powered, Air Consumption 80 cfm, Air Inlet 1/2 in NPT, Air Pressure 90 psi, Max. Air Pressure 100 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/4 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Breakaway Torque 3,252 ft-lb, Fastening Torque 1,950 ft-lb, Free Speed 5,000 RPM, Impact Rated Yes, Impact Sound Level 99 dB, Impacts per Minute 850, Number of Speed Settings Continuous, Power to Weight Ratio 143.8 ft-lb/lb, Max. Bolt Capacity 1 in
