This item is Discontinued.

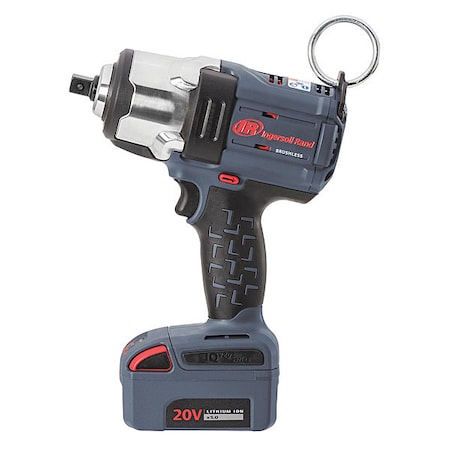

Ingersoll-Rand 20V High-torque 1/2" Cordless Impact Wrench, Pin Retainer W7152P

20V High-torque 1/2" Cordless Impact Wrench, Pin Retainer (Discontinued)

  • Mfr # W7152P
  • Zoro # G1205265
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
W7152P
Zoro #
G1205265
UPC #
663024014028
Country of Origin
China

Dimensions

Drive Size
1/2 in
Overall Length
9 1/4 in
Head Height
8 1/8 in
Head Width
3 1/4 in
For A490 Bolt Size Capacity
7/8 in
For A325 Bolt Size Capacity
7/8 in
Head Length
8 1/8 in

Details

Voltage
20 V DC
Max. Torque
1,000 ft-lb
Includes
Retaining Ring
Number of Batteries Included
0
Power Source
Cordless
Impacts per Minute
2,450
Free Speed
1,900 RPM
Fastening Torque
1,000 ft-lb
Brushless Motor
Yes
Drive Style
Standard
Number of Speed Settings
2
Series
IQV
Corded/Cordless
Cordless
Handle Type
Pistol Grip
Drive Configuration
Straight
Anvil Impact Action
Mechanical
Tool Weight
6 lb
Clutch Style
Impact
Battery Included
No
Cordless Tool Battery Type
Li-Ion
Features
Variable Switch with Brake
Impact Sound Level
96dB to 107dB
Reaction Bar
No
Built-In Light
Yes
Actuation
Trigger
Case Included
Yes
Impact Rated
Impact Rated
Charger Included
No
Cordless Tool Kit Contents
(1) Bare Tool
Tool Style
Compact
Breakaway Torque
1,500 ft-lb
Battery Series
IQV20(TM)
Wireless Tool Tracking
No
Handle Material
Composite
Standards
CSA Certified, UL Listed
Vibration Level
17.0 m/s²
Power to Weight Ratio
166.7 ft-lb/lb
Drive Type
Standard
Housing Material
Steel
Lock-Off Switch
No
Retainer Type
Pin Detent
Battery Model No.
40F181, 48KT05, 48KT06
Charger Model
401R80
Built-In Light Type
Halo Ring
Number of Chargers Included
0
Motor Type
Brushless
Includes Reaction Bar
No Reaction Bar
Tool Series
IQV20(TM)
Throttle Type
Trigger
Includes Lock-Off Switch
No Lock-Off Switch
Torque - Maximum
1,000 ft-lb
Battery Chemistry
Li-Ion
Includes Case
Case Included
Speed Control
Variable
Anvil Style
Standard
No Load Speed
1,900 RPM
Drive Shape
Square
Battery Platform
IQV20(TM)

Description

Cordless Impact Wrenches, Impact Wrench, Drive Size 1/2 in, Drive Configuration Straight, Max. Torque 1,000 ft-lb, Bare Tool, Voltage 20 V DC, Series IQV, Cordless Tool Battery Type Li-Ion, Brushless Motor Yes, Anvil Impact Action Mechanical, Max. Blows per Minute 2450, Max. No Load RPM 1900, Cordless, Handle Type Pistol Grip, Battery Capacity Not Applicable, Tool Length 8-7/64 In., Tool Weight 6 lb, Clutch Style Impact, Battery Included No, Battery Pack Replacement 40F181, 48KT05, 48KT06
