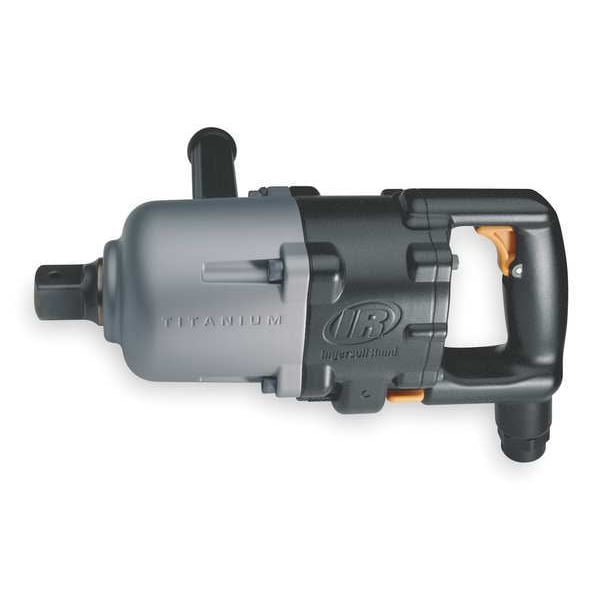

3940B2TI 1" Air Impact Wrench, 2750ft-lb Torque, Super Duty, D-handle

Mfr # 3940B2TI
Zoro # G3107623

4,884.99

Free Shipping & Returns

Key Features

Square Drive Size

Free Speed

6,000 RPM

Air Inlet

1/2 in NPT

Handle Type

D-Handle

Retainer Type

Through Hole

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 3940B2TI
Zoro #: G3107623
UPC #: 663023048383
Country of Origin: Mexico

Dimensions

Square Drive Size: 1"
Min. Hose Size: 3/4 in
Air Inlet Size - Air Tools: 1/2" NPT
Drive Size - Air Tools: 1" Square
Overall Length: 13 1/2 in
Drive Size: 1 in
Hose Size - Minimum: 3/4 in
Air Inlet Connection Size: 1/2 in
Wire Rope Length: 13 1/2 in
Length: 13 1/2 in

Details

Item: Air Impact Wrench
Free Speed: 6,000 RPM
Air Inlet: 1/2 in NPT
Handle Type: D-Handle
Retainer Type: Through Hole
Housing Material: Metal
Max. Bolt Capacity: 1 in
Required Pressure: 90 psi
Average CFM @ 15 Second Run Time: 15.00
Style: D-Handle
Blows per Minute: 800
Duty: Industrial
Item - Air Impact Wrenches: Air Impact Wrench
Retainer Type - Air Impacts: Thru Hole
Body Style - Air Tools: D-Handle
Duty Cycle - Air Tools: Industrial Duty
CFM @ Full Load: 64.0
Torque Range: 40 to 150 ft.-lb.
Blows per Minute - Air Tools: 800
Max. Torque: 2500 ft.-lb.
Anvil: Standard
Anvil Type - Air Impacts: Standard
Tool Weight: 21.2 lb
Features: Bronze End Plate, Twin Hammer Mechanism
Handle Material: Metal
Standards: EN ISO 11148-6, EN ISO 15744, EN ISO 28927-2
Duty Rating: Industrial Duty
Air Pressure: 90 psi
Power Source: Air-Powered
Impact Rated: Yes
Clutch Style: Twin Hammer
Breakaway Torque: 1,750 ft-lb
Max. Air Pressure: 100 psi
Impact Sound Level: 101 dB
Fastening Torque: 2,500 ft-lb
Exhaust Location: Bottom
Vibration Level: 13.1 m/sq sec
Power to Weight Ratio: 117.9 ft-lb/lb
Drive Type: Standard
Impacts per Minute: 800
Number of Speed Settings: Continuous
Min. Air Pressure: 90 psi
Air Consumption: 64 cfm
Tool Style: Full-Size
Built-In Light: No
Frequency of Use: Frequent Maintenance to Heavy Production
Air Pressure - Minimum: 90 psi
Drive Shape: Square
Air Inlet Type: NPT
Bolt Capacity - Maximum: 1 in
Air Pressure - Maximum: 100 psi
Tool Life: Ultra Durable
Power Source - TS Only: Air-Powered
Power Source - old: Air-Powered

Description

The Ingersoll-Rand 3940B2TI is part of the 3900 Series, delivering high-torque performance through a 7-vane reverse-bias motor and a Twin Hammer impact mechanism. This mechanism is recognized for its balanced power delivery and long service life. The tool features a D-handle design with an inside trigger for enhanced ergonomics and control during heavy fastening or loosening tasks.

Performance and Torque:

Breakaway Torque: 2,500 ft-lb
Fastening Torque: 1,650 ft-lb
Free Speed: 6,000 RPM
Impacts Per Minute: 800 BPM
Power-to-Weight Ratio: 117.9 ft-lb/lb Construction and Durability:
- Titanium Hammer Case: Provides a lightweight yet extremely rugged housing for the impact mechanism.
- Bronze End Plates: Increases the tool's resistance to wear and abrasive contaminants, extending the lifespan of the motor.
- Pressure-Fed Lubrication: Automatically greases the impact mechanism during operation to ensure peak reliability.
- Corrode-XTM Treatment: A specialized internal coating that protects essential motor components from moisture and contaminants in the air supply. Technical Specifications:
  - Drive Size: 1" Square (Standard Anvil)
  - Retainer Type: Through Hole
  - Air Inlet: 1/2" NPT
  - Minimum Hose Size: 3/4"
  - Air Consumption: 64 CFM (Full Load)
  - Tool Weight: 21.2 lb
  - Overall Length: 13.5 in
  - Sound Level: 101 dB
