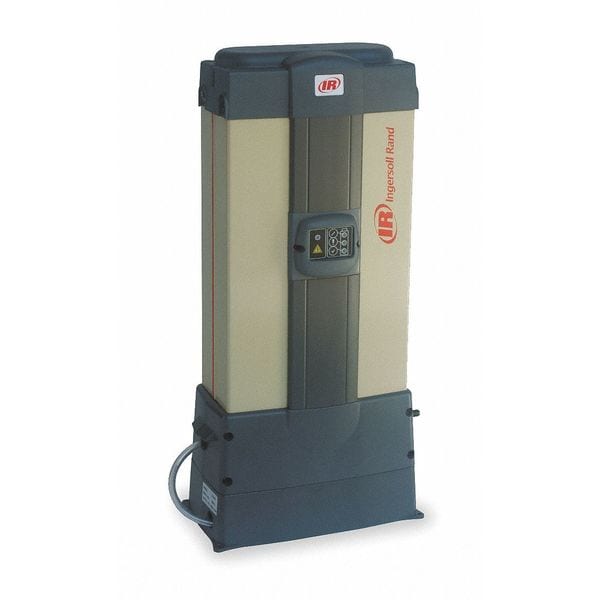

Air Dryer, Dessicant, 24 CFM, 7.5 Amps

INGERSOLL-RAND| Zoro #: G0416315| Mfr #: D41IM

$2,473.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0416315 Mfr #: D41IM
Control Panel: LEDVoltage: 115
Hz: 60Timer: Electronic
Control Valve: SolenoidExhaust Muffler: Heavy Duty
Cycle: 6 minuteMax. Inlet Temp. (Deg. F): 122
Phase: 1ISO Class: 2
Max. Ambient Temp. (F): 131Dew Point (Deg. F): -40
Min. Working Pressure (PSI): 58Item: Compressed Air Dryer
Type: Regenerative DesiccantPressure Drop: 5 psi
For Air Comp. HP: 7.5Full Load Amps: 0.64
Inlet Flow Capacity @ 100 PSI: 24Outlet Flow Capacity @ 100 PSI: 20.2
Inlet/Outlet NPTF (In.): 3/4Max. Working Pressure (PSI): 232
Height (In.): 32-15/16Width (In.): 10-1/2
Depth (In.): 11-15/16Includes: Moisture Indicators
Diffuser: -Features: -
Mount: -CFM: 24
Country of Origin (subject to change): United States

Product Description

Compressed Air Dryer, Regenerative Desiccant, ISO Class 2, 24 CFM, Dew Point (Deg. F) -40, For Air Comp. HP 7.5, 115 Voltage, 0.64 Full Load Amps, 60 Hz, 1 Phase, Inlet Flow Capacity @ 100 PSI 24, Outlet Flow Capacity @ 100 PSI 20.2, 3/4 Inlet/Outlet NPTF (In.), Max. Working Pressure (PSI) 232, Min. Working Pressure (PSI) 58, Max. Inlet Temp. (Deg. F) 122, Max. Ambient Temp. (F) 131, Pressure Drop 5 psi, 6 minute Cycle, Electronic Timer, Heavy Duty Exhaust Muffler, - Diffuser
