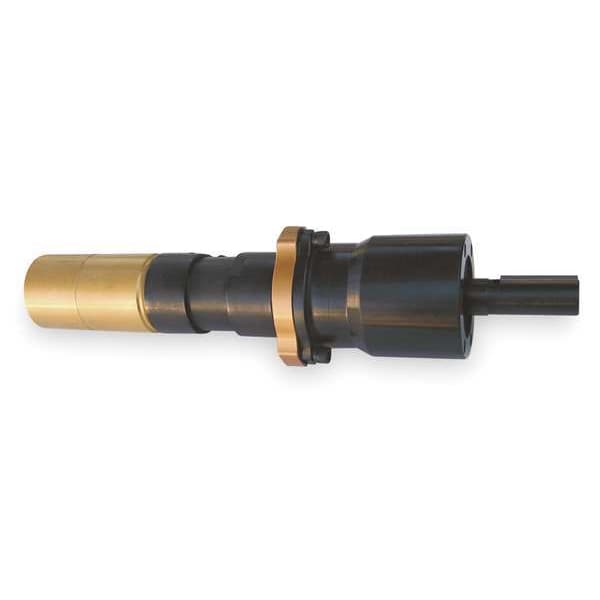

Air Gearmotor, 3 HP, 95 cfm, 170 rpm
Mfr # 4840U
Zoro # G3031025
product price:Â
$
7,382.99
/ea
Free Shipping & Returns
Key Features
Running Torque @ Max. Pressure
1,800 in-lb
HP
3 hp
Max. Air Flow
95 cfm
No Load RPM
170 RPM
Shaft Dia.
1 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 4840U
- Zoro #
- G3031025
- UPC #
- 094703953800
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 1 in
- Port Size
- 1/2 in NPT
- Overall Length
- 11 3/8 in
- Outside Dia.
- 4 in
- Shaft Length
- 2 1/4 in
- Keyway Length
- 1 5/8 in
- Length Less Shaft
- 12 3/8 in
- Keyway Width
- 1/4 in
- Manufacturers Warranty Length
- 90 day
- Outside Diameter
- 4 3/8 in
- Shaft Diameter
- 1 in
- Overall Width
- 4 3/8 in
- Inlet Size
- 1/2 in
- Keyway Depth
- 1/4 in
- Wire Rope Length
- 11 3/8 in
- Length
- 11 3/8 in
Description
Air Gearmotor, Output Power @ Maximum Speed 3 hp, Maximum Torque 1,800 in-lb, No Load Speed 170 RPM, Maximum Flow Rate 95 cfm, Shaft Diameter 1 in, Shaft Length 2 1/4 in, Mount Type Face, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CCW, Housing Material Steel, Gear Ratio 51:1, Air Consumption 95 scfm, Air Inlet Center to Center Distance 1 3/8 in, Weight 20.13 lb, Series 4800 Series Air Motors, Includes Planetary Gearing, Keyway Depth 1/4 in, Keyway Type Square
