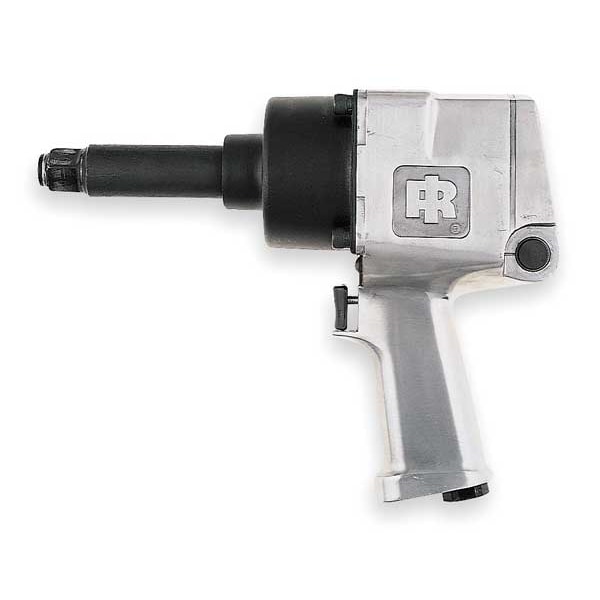

Ingersoll-Rand Air Impact Wrench, 3/4 In. Dr., 5500 rpm 261-3 - main
Shop INGERSOLL-RAND

Air Impact Wrench, 3/4 In. Dr., 5500 rpm

  • Mfr # 261-3

  • Zoro # G2915561

product price:  $789.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
3/4"
Free Speed
5,500 RPM
Air Inlet
3/8 in NPT
Handle Type
Pistol Grip
Retainer Type - Air Impacts
Ring
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
261-3
Zoro #
G2915561
UPC #
663023005485
Country of Origin
China

Dimensions

Square Drive Size
3/4"
Drive Size - Air Tools
3/4" Square
Min. Hose Size
1/2 in
Air Inlet Size - Air Tools
3/8" NPT
Overall Length
11 4/5 in
Drive Size
3/4 in Square
Extended Anvil Length
3 in

Details

Item
Impact Wrench
Free Speed
5,500 RPM
Air Inlet
3/8 in NPT
Handle Type
Pistol Grip
Retainer Type - Air Impacts
Ring
Blows per Minute - Air Tools
1000
Required Pressure
90 psi
Max. Torque
1200 ft.-lb.
Retainer Type
Friction Ring
Body Style - Air Tools
Pistol
Max. Bolt Capacity
3/4 in
Style
Pistol Grip
Blows per Minute
1000
Item - Air Impact Wrenches
Air Impact Wrench
Tool Weight
13 lb
Housing Material
Aluminum
Torque Range
200 to 900 ft.-lb.
Duty Cycle - Air Tools
General Duty
CFM @ Full Load
38.0
Duty
General
Average CFM @ 15 Second Run Time
9.50
Features
Jumbo Hammer Impact Mechanism, Reliability
Anvil Type - Air Impacts
3" Extended
Anvil
3" Extended
Handle Material
Aluminum
Standards
EN ISO 28927-2, EN ISO11148-6, EN ISO15744
Impact Sound Level
98 dB
Impacts per Minute
1,000
Drive Type
Extended
Air Pressure
90 psi
Breakaway Torque
1,200 ft-lb
Built-In Light
No
Max. Air Pressure
100 psi
Power Source
Air Powered
Duty Rating
General Duty
Vibration Level
10.4 m/sq sec
Power to Weight Ratio
92.3 ft-lb/lb
Clutch Style
Jumbo Hammer
Fastening Torque
1,200 ft-lb
Tool Style
Full-Size
Air Consumption
38 cfm
Min. Air Pressure
90 psi
Number of Speed Settings
Continuous
Exhaust Location
Bottom
Impact Rated
Yes

Description

Impact Wrench, Power Source Air Powered, Air Consumption 38 cfm, Air Inlet 3/8 in NPT, Air Pressure 90 psi, Max. Air Pressure 100 psi, Min. Air Pressure 90 psi, Min. Hose Size 1/2 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 1,200 ft-lb, Fastening Torque 1,200 ft-lb, Free Speed 5,500 RPM, Impact Rated Yes, Impact Sound Level 98 dB, Impacts per Minute 1,000, Number of Speed Settings Continuous, Power to Weight Ratio 92.3 ft-lb/lb, Max. Bolt Capacity 3/4 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
