Shop INGERSOLL-RAND

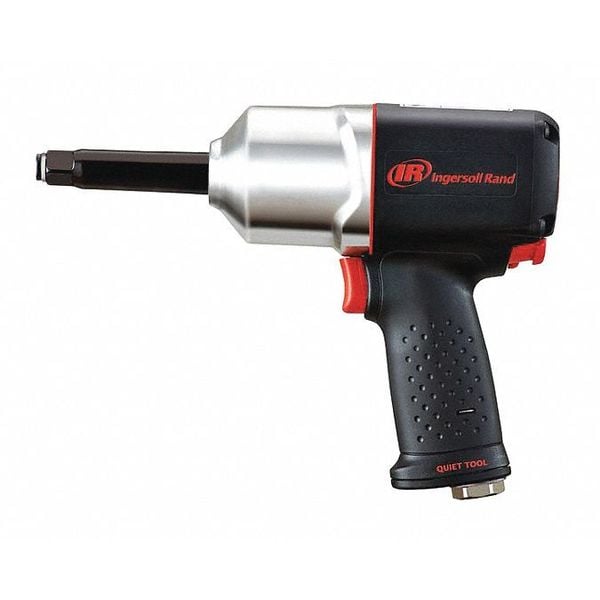

Air Impact Wrench, General, 1/2" Max. Bolt

  • Mfr # 2135QXPA-2

  • Zoro # G4776228

product price:  $357.99
/ea
Free Shipping & Returns

Key Features

Square Drive Size
1/2"
Free Speed
11,000 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol-Grip
Average CFM @ 15 Second Run Time
5.80
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2135QXPA-2
Zoro #
G4776228
UPC #
663023120119
Country of Origin
United States

Dimensions

Square Drive Size
1/2"
Air Inlet Size - Air Tools
1/4" NPT
Overall Length
9 1/2 in
Min. Hose Size
3/8 in
Extended Anvil Length
2 in
Drive Size
1/2 in
Air Inlet Connection Size
1/4 in
Hose Size - Minimum
3/8 in
Wire Rope Length
9 1/2 in

Details

Item
Air Impact Wrench
Free Speed
11,000 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol-Grip
Average CFM @ 15 Second Run Time
5.80
Housing Material
Composite
Blows per Minute - Air Tools
1250
Body Style - Air Tools
Pistol
Torque Range
780 to 1100 ft.-lb.
Item - Air Impact Wrenches
Air Impact Wrench
Handle Material
Composite
Retainer Type - Air Impacts
Ring
Duty
General
CFM @ Full Load
23.0
Tool Weight
4.3 lb
Features
Same High-Impact Output Every Time You Use This Tool On the Job
Required Pressure
90 psi
Duty Cycle - Air Tools
General Duty
Blows per Minute
1250
Anvil Type - Air Impacts
2" Extended
Max. Bolt Capacity
1/2 in
Max. Torque
780 ft.-lb.
Retainer Type
Friction Ring
Standards
ISO11148-6, ISO15744, ISO28927-2
Drive Type
Extended
Tool Style
Full-Size
Built-In Light
No
Max. Air Pressure
100 psi
Number of Speed Settings
Continuous
Min. Air Pressure
90 psi
Clutch Style
Twin Hammer
Vibration Level
9.7 m/sq sec
Power Source
Air-Powered
Impact Sound Level
91 dB
Fastening Torque
700 ft-lb
Duty Rating
General Duty
Power to Weight Ratio
181.3 ft-lb/lb
Impact Rated
Yes
Air Consumption
23 cfm
Breakaway Torque
1,100 ft-lb
Exhaust Location
Bottom
Air Pressure
90 psi
Impacts per Minute
1,250
Tool Life
Ultra Durable
Air Pressure - Minimum
90 psi
Bolt Capacity - Maximum
1 in
Drive Shape
Square
Air Inlet Type
NPT
Frequency of Use
Maintenance to Light Production
Air Pressure - Maximum
100 psi
Power Source - TS Only
Air-Powered

Description

Impact Wrench, Power Source Air Powered, Air Consumption 23 cfm, Air Inlet 1/4 in NPT, Air Pressure 90 psi, Max. Air Pressure 100 psi, Min. Air Pressure 90 psi, Min. Hose Size 3/8 in, Exhaust Location Bottom, Duty Rating General Duty, Breakaway Torque 780 ft-lb, Fastening Torque 700 ft-lb, Free Speed 11,000 RPM, Impact Rated Yes, Impact Sound Level 91 dB, Impacts per Minute 1,250, Number of Speed Settings Continuous, Power to Weight Ratio 181.3 ft-lb/lb, Max. Bolt Capacity 1/2 in
