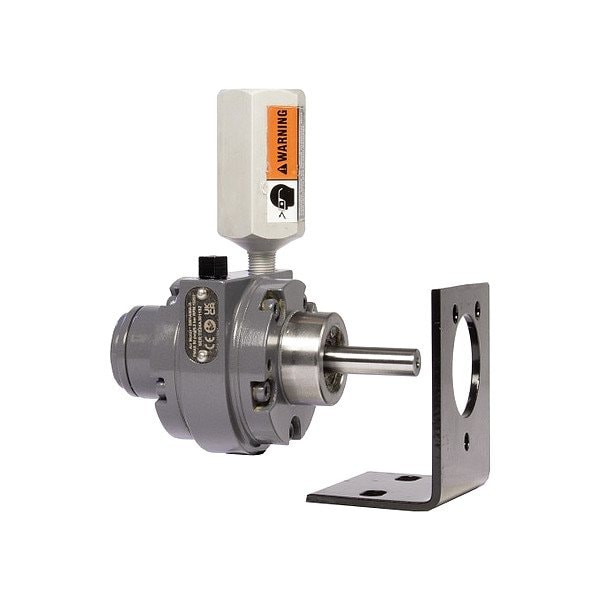

Air Motor, 15,000 RPM, 20 scfm
Mfr # SM1AMAL-A
Zoro # G115487441
product price:Â
$
383.99
/ea
Free Shipping & Returns
Key Features
Rotation
CCW
Overall Length
4 1/8 in
Mount Type
Face, Foot, Hub
Overall Height
4 3/4 in
Length Less Shaft
3 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- SM1AMAL-A
- Zoro #
- G115487441
- UPC #
- 3663836045996
- Country of Origin
- India
- Item
- Air Motor
- Rotation
- CCW
- Mount Type
- Face, Foot, Hub
- Standards
- ATEX Certified, CE Certified
- Includes
- Face Mount, Foot Mount, Hub Mount
- Housing Material
- Steel
- Keyway Type
- Rounded
- Minimum Ambient Temperature
- 33.8 Degrees F
- Output Shaft Type
- Round
- Air Inlet Type
- NPT
- Speed @ Maximum Torque
- 7,000 RPM
- Output Power @ Maximum Speed
- 0.45 hp
- Series
- SM
- System of Measurement
- Inch
- Housing Material Finish
- Painted
- Mounting Orientation
- Any Angle
- Maximum Operating Pressure
- 90 psi
- Starting Torque
- 0.4 ft-lb
- Maximum Ambient Temperature
- 104 Degrees F
- No Load Speed
- 15,000 RPM
- Air Consumption
- 20 scfm
- Weight
- 2.43 lb
- Maximum Torque
- 6.81 in-lb
- Maximum Flow Rate
- 40 scfm
Description
Air Motor, Output Power @ Maximum Speed 0.45 hp, Maximum Torque 6.81 in-lb, No Load Speed 15,000 RPM, Maximum Flow Rate 40 scfm, Shaft Diameter 3/8 in, Shaft Length 1 1/8 in, Mount Type Face, Foot, Hub, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CCW, Housing Material Steel, Maximum Operating Pressure 90 psi, Includes Face Mount, Foot Mount, Hub Mount, Weight 2.43 lb, Housing Material Finish Painted, Keyway Type Rounded, Maximum Ambient Temperature 104 Degrees F
