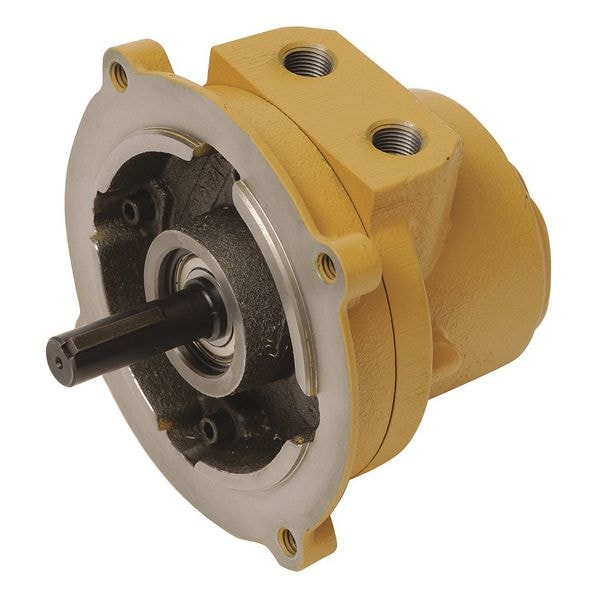

Air Motor, 1.93 HP, Max. Air Flow 67 cfm
- Mfr # MVA017B
- Zoro # G1809600
product price:Â
$
1,296.99
/ea
Free Shipping & Returns
Key Features
Running Torque @ Max. Pressure
84 in-lb
HP
1.93 hp
Max. Air Flow
67 cfm
No Load RPM
5,000 RPM
Shaft Dia.
5/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MVA017B
- Zoro #
- G1809600
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Shaft Dia.
- 5/8 in
- Port Size
- 3/8 in NPT
- Overall Length
- 6 3/4 in
- Overall Height
- 9 3/8 in
- Overall Width
- 7 7/8 in
- Keyway Length
- 1 1/4 in
- Outside Dia.
- 6.5 in
- Keyway Width
- 1/4 in
- Shaft Length
- 2 1/8 in
- Length Less Shaft
- 4 5/8 in
- Shaft Diameter
- 5/8 in
- Keyway Depth
- 1/4 in
- Mount Hole Center-to-Center Length
- 2 in
- Outside Diameter
- 6 1/2 in
- Inlet Size
- 3/8 in
- Mount Hole Center-to-Center Width
- 3 3/8 in
- Wire Rope Length
- 6 3/4 in
- Length
- 6 3/4 in
Description
Air Motor, Output Power @ Maximum Speed 1.93 hp, Maximum Torque 84 in-lb, No Load Speed 5,000 RPM, Maximum Flow Rate 67 cfm, Shaft Diameter 5/8 in, Shaft Length 2 1/8 in, Mount Type Flange, Inlet Size 3/8 in, Air Inlet Type NPT, Rotation CCW, Housing Material Cast Iron, Maximum Operating Pressure 90 psi, Keyway Width 1/4 in, Weight 12.5 lb, Housing Material Finish Unfinished, Keyway Type Square, Maximum Ambient Temperature 150 Degrees F, Minimum Ambient Temperature 0 Degrees F
