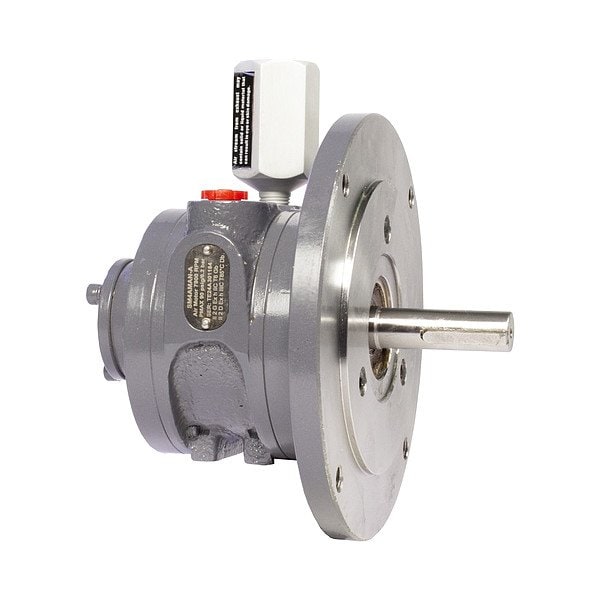

Air Motor, 7,900 RPM, 67 scfm

  • Mfr # SM4AMAN-A
  • Zoro # G015487473
product price:
$
493.99
/ea
Free Shipping & Returns

Key Features

Rotation
CW/CCW
Overall Length
6 1/2 in
Length Less Shaft
4 31/50 in
Overall Width
3 7/8 in
Keyway Length
1 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SM4AMAN-A
Zoro #
G015487473
UPC #
3663836046023
Country of Origin
India
Item
Air Motor
Rotation
CW/CCW
Standards
ATEX Certified, CE Certified
Housing Material
Steel
Keyway Type
Rounded
No Load Speed
7,900 RPM
Mounting Orientation
Any Angle
Series
SM
Air Inlet Type
NPT
Weight
11.22 lb
Maximum Operating Pressure
6.2 bar
Shaft Orientation
Right Angle
Starting Torque
2.6 ft-lb
Maximum Ambient Temperature
104 Degrees F
Minimum Ambient Temperature
33.8 Degrees F
Output Shaft Type
Keyed
Air Consumption
67 scfm
Output Power @ Maximum Speed
1.5 hp
Speed @ Maximum Torque
3,000 RPM
System of Measurement
Inch
Maximum Flow Rate
134 scfm
Maximum Torque
49.56 in-lb

Dimensions

Overall Length
6 1/2 in
Length Less Shaft
4 31/50 in
Overall Width
3 7/8 in
Keyway Length
1 1/4 in
Shaft Length
2 in
Overall Height
7 in
Shaft Diameter
3/4 in
Manufacturers Warranty Length
1 yr
Inlet Size
1/2 in
Wire Rope Length
6 1/2 in
Length
6 1/2 in

Description

Air Motor, Output Power @ Maximum Speed 1.5 hp, Maximum Torque 49.56 in-lb, No Load Speed 7,900 RPM, Maximum Flow Rate 134 scfm, Shaft Diameter 3/4 in, Shaft Length 2 in, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Steel, Maximum Operating Pressure 6.2 bar, Weight 11.22 lb, Keyway Type Rounded, Maximum Ambient Temperature 104 Degrees F, Minimum Ambient Temperature 33.8 Degrees F, Mounting Orientation Any Angle, Keyway Length 1 1/4 in, Shaft Orientation Right Angle
